Wall Thickness Gauge Sauter TB-US

£299.00 - £351.00
Choose model
Kern Standard
Battery operation ZERO Calibration block Focus function
Kern Options
Certificate_ISO_4_days
Short Description
The SAUTER TB-US coating thickness gauge is delivered complete and ready to use – including measuring sensor, batteries, and calibration plate – all packed in a sturdy and practical case. The calibration plate is integrated into the gauge, so it is always readily available. The gauge uses ultras .... Read the full description
TB 200-0.1US
TB 200-0.1US
TB 200-0.1US
See specifications
Special Price £358.02 £298.35 £421.20 £351.00
1.5 - 200 mm Range
0.1 mm readout
0.5% Measuring accuracy
0.9 m
Case, Batteries, External measurement sensor, Ultrasound contact gel
No
No
No
8 mm
5 MHz
500-9999 m/s
No
1.5 V AA
Yes
4
0,30 kg
0 °C / 50 °C
Calibration Certificate / Verification
£128.35
Special Price £358.02 £298.35 £421.20 £351.00

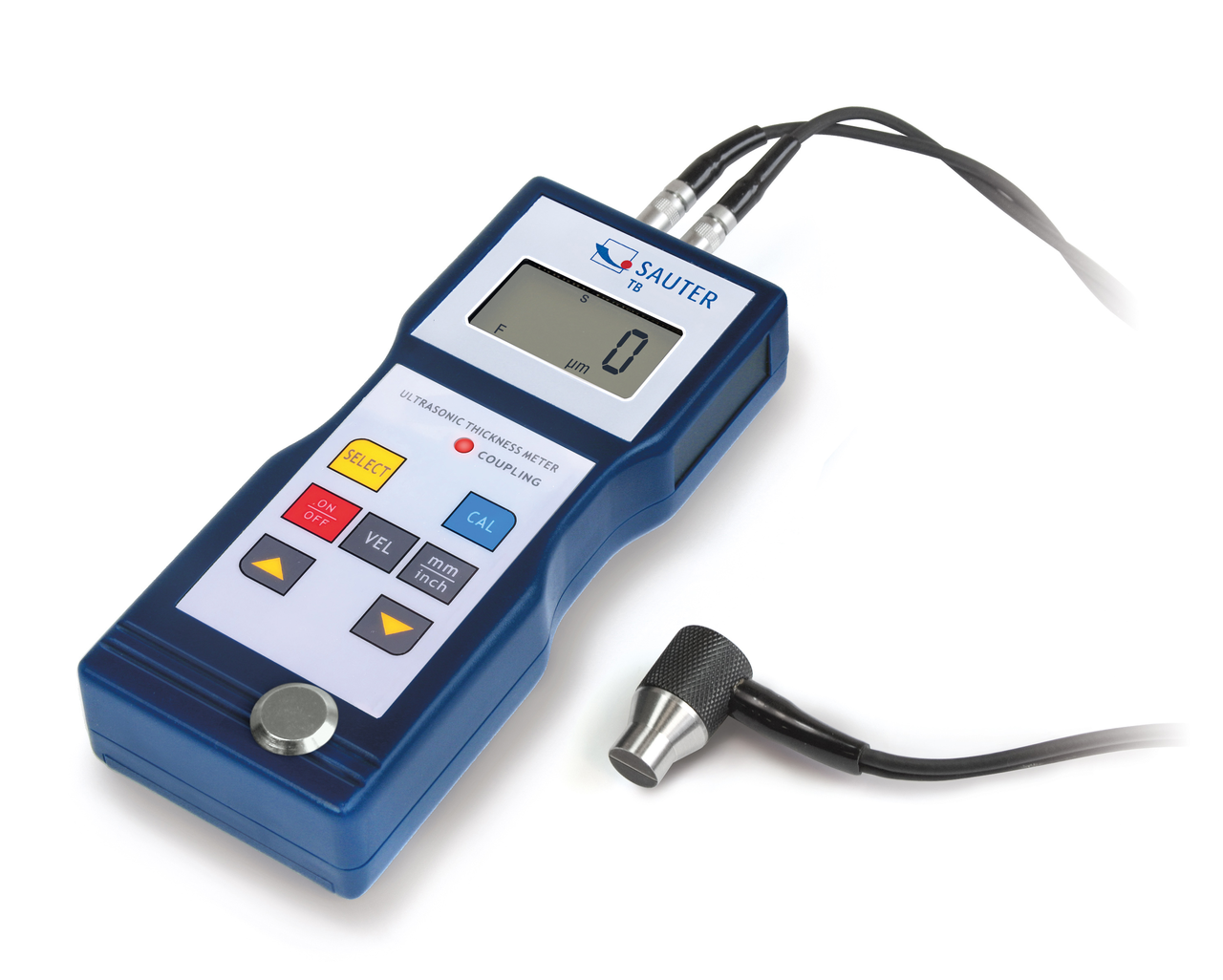

TB 200-0.1US-RED
TB 200-0.1US-RED
TB 200-0.1US-RED
See specifications
Special Price £304.98 £254.15 £358.80 £299.00
1.5 - 200 mm Range
0.1 mm readout
0.5% Measuring accuracy
0.9 m
Case, Batteries, External measurement sensor, Ultrasound contact gel
No
No
No
8 mm
5 MHz
500-9999 m/s
No
1.5 V AA
Yes
4
0,30 kg
0 °C / 50 °C
Calibration Certificate / Verification
£128.35
Special Price £304.98 £254.15 £358.80 £299.00
pencil-alt

Description

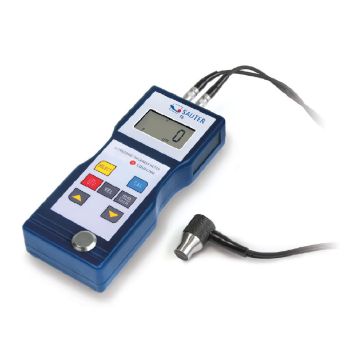

SAUTER TB-US Ultrasonic Thickness Gauge is delivered complete and ready to use – including measuring sensor, batteries, calibration plate, and ultrasonic gel – all packed in a sturdy and practical case. The calibration plate is integrated into the gauge, so it is always at hand. The gauge uses ultrasound to measure material thickness. The sound velocity for various materials is pre-set, making the gauge easy to use on multiple material types.

TB-US-RED version can only be used with the pre-set materials, whereas the TB-US version can also be used with other materials.

Pre-set materials:
Steel, cast iron, aluminium, copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, nodular cast iron.

Connection:
The SAUTER TB-US cannot be connected to a computer.

Power supply:
The gauge comes standard with 4 x 1.5 V AA batteries.

Features:
- Supplied in a robust case
- Calibration plate integrated into the gauge

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-tb-us
Type Thickness gauge
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Temperature 0 °C / 50 °C
Cable length 0,9 m
Number of batteries 4
Battery type 1.5 V AA
Measuring accuracy 0,5%
nan No
Echo-echo function No
Memory No
Limit function No
Included in the delivery Case, Batteries, External measurement sensor, Ultrasound contact gel
