Force Gauge Sauter DB

£1,489.00 - £1,699.00
Choose model
Standard
Rechargeable battery pack Mains adapter Power supply 230 V RS 232 data interface USB data interface Tolerance Peak hold function Statistics Memory ZERO
Options
PC software Certificate_factory
Short Description
SAUTER DB force gauge for measuring torque tools such as torque wrenches, electric screwdrivers, and battery-powered tools. The gauge is suitable for testing in both rotational directions (clockwise and counterclockwise). A mounting plate is included for models over 20 Nm for secure fixation. Standa .... Read the full description
3-5 business days *
Free delivery
Get technical data Get manual Product questions
DB 500-2
DB 500-2
DB 500-2
See specifications
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
25 - 500 Nm Maximum capacity
0,1 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
3/4 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
4,0 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
Add accessories

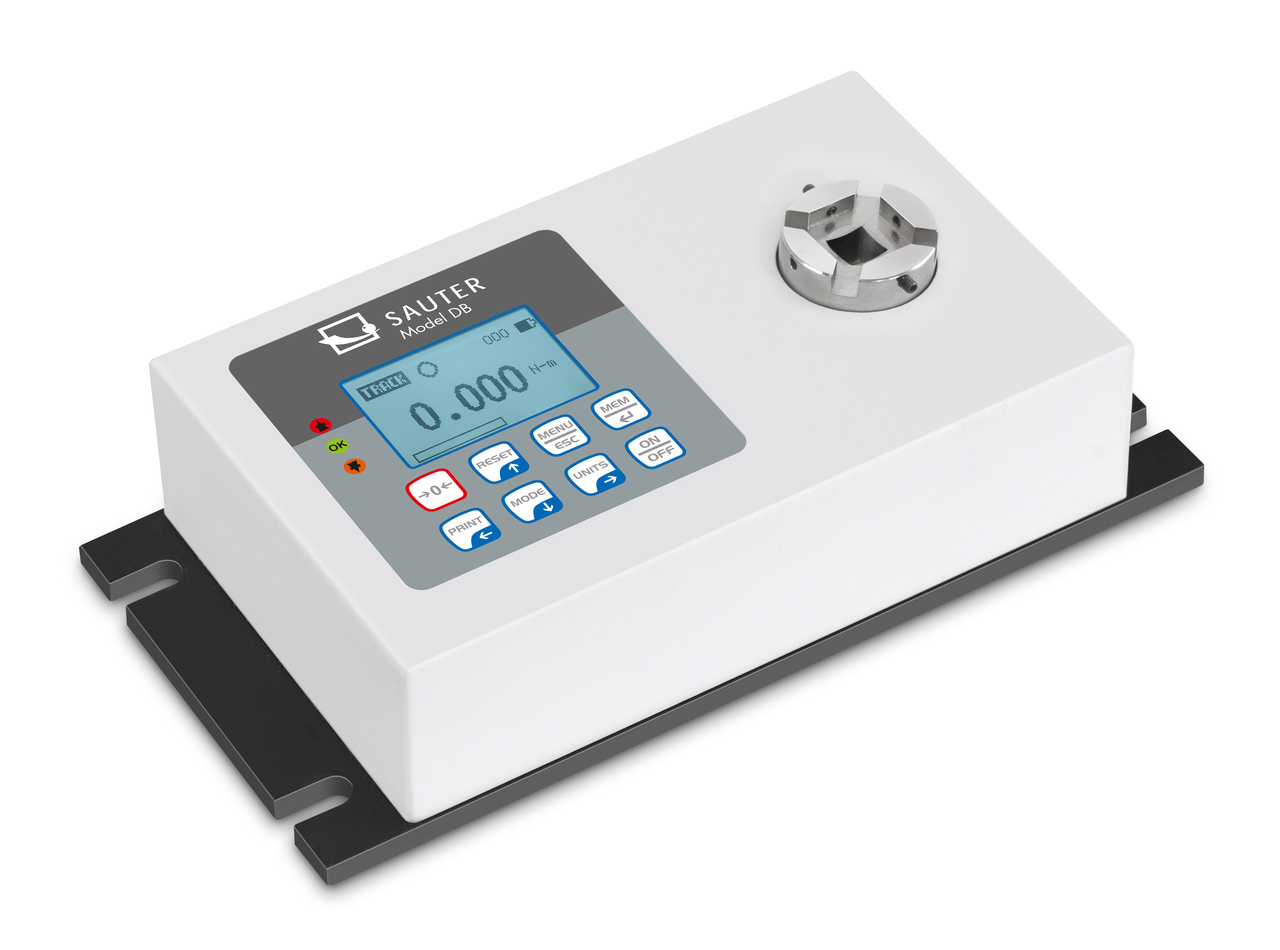

DB 200-2
DB 200-2
DB 200-2
See specifications
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
10 - 200 Nm Maximum capacity
0,05 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
1/2 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
3,2 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
Add accessories
DB 100-2
DB 100-2
DB 100-2
See specifications
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
5 - 100 Nm Maximum capacity
0,02 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
3/8 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
3,2 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
Add accessories
DB 50-2
DB 50-2
DB 50-2
See specifications
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
2,5 - 50 Nm Maximum capacity
0,01 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
20 mm,3/8 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
3,4 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
Add accessories
DB 20-3
DB 20-3
DB 20-3
See specifications
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
1 - 20 Nm Maximum capacity
0,005 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
20 mm,3/8 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
3,4 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,834.92 £1,529.10 £2,038.80 £1,699.00
Add accessories
DB 10-3
DB 10-3
DB 10-3
See specifications
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
0,5 - 10 Nm Maximum capacity
0,002 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
20 mm,3/8 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
2,2 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
Add accessories

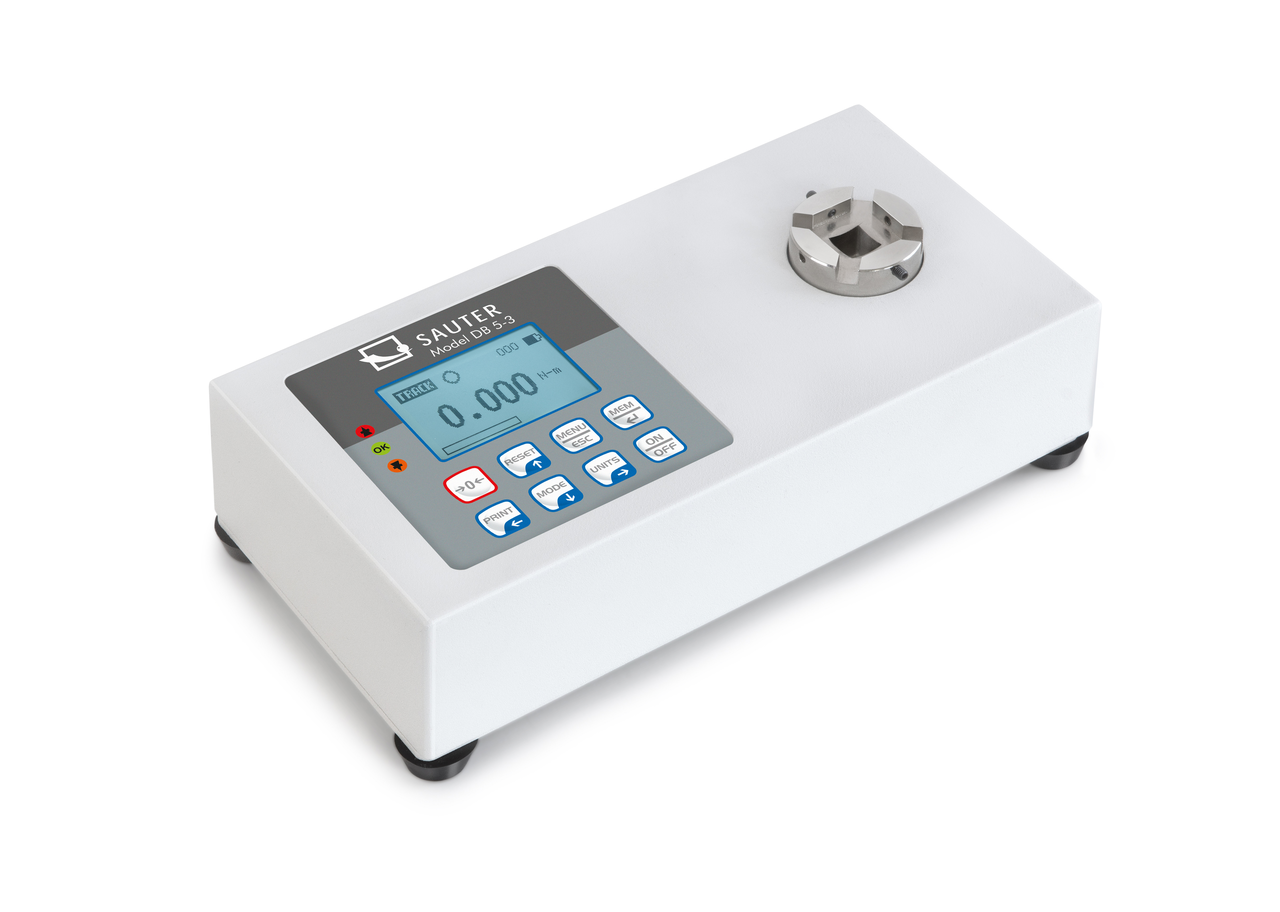

DB 5-3
DB 5-3
DB 5-3
See specifications
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
0,25 - 5 Nm Maximum capacity
0,001 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
20 mm,3/8 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
2,4 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
Add accessories
DB 1-4
DB 1-4
DB 1-4
See specifications
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
0,05 - 1 Nm Maximum capacity
0,0002 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
20 mm,3/8 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
2,2 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
Add accessories

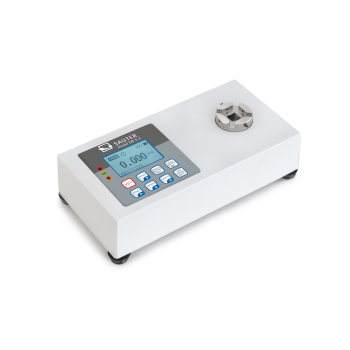

DB 0.5-4
DB 0.5-4
DB 0.5-4
See specifications
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
0,025 - 0,5 Nm Maximum capacity
0,0001 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
20 mm,3/8 "
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
2,2 kg
15 °C / 35 °C
Calibration Certificate / Verification
£209.00
Special Price £1,608.12 £1,340.10 £1,786.80 £1,489.00
Add accessories
pencil-alt

Description

SAUTER DB Torque Gauge for measuring torque tools such as torque wrenches, electric screwdrivers, and battery-powered tools. The gauge is suitable for testing in both rotation directions (clockwise and counterclockwise). A mounting plate is included for models over 20 Nm for secure fixation.

Connectivity:
Standard RS232 and USB connections included.

Power Supply:
The torque gauge comes with a power adapter and rechargeable battery.

Functions:
- Peak hold function
- Track mode for continuous measurement
- Individually adjustable upper and lower limits with visual and acoustic feedback
- Statistical function to calculate average or standard deviation

Features:
- Robust metal housing for use in demanding environments
- Internal memory for up to 500 measurements

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-db
Type Force gauge
document

Documents

Manual gb English download
Datasheet gb English download
Declaration of conformity - CE gb English download
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Battery life (hours) 18
Battery life (hours) with backlight 14
Included in the delivery Case
Overload Protection 120%
Temperature 15 °C / 35 °C
Peak function Yes
nan No
Average function No
Limit function Yes
Output control No
Data Output RS-232 (Included), USB (Included)
Power Supply Charger (Incl.), Rechargeable battery (Incl.)
