Force Gauge Sauter FH-M

£868.00 - £1,459.00
Choose model
Kern Standard
Mains adapter Rechargeable battery pack RS 232 data interface USB data interface Peak hold function Push and Pull Internal memory Measuring with tolerance range (function to set limits) ZERO Statistics
Kern Options
Certificate_DAkkS_4_days Certificate_ISO_4_days PC software
Short Description

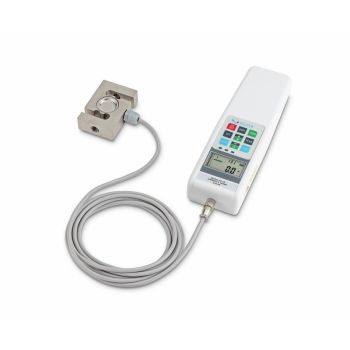

Sauter FH-M Force Gauge features a "peak hold" function, allowing display of the maximum load. It also has a "push & pull" function to measure both tensile and compressive forces. The device can store up to ten measurement results and calculate average, minimum, and maximum values. The FH-M has a po .... Read the full description
FH 1K.
FH 1K.
FH 1K.
See specifications
Special Price £885.36 £737.80 £1,041.60 £868.00
1 kN Maximum capacity
0,5 N readout
0,5% Measuring accuracy
3 m
Case
150%
Yes
Yes
Yes
Yes
Yes
40
24
External loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
1,6 kg
10 °C / 40 °C
Calibration Certificate / Verification
£173.40
£173.40
£324.70
Special Price £885.36 £737.80 £1,041.60 £868.00
FH 2K.
FH 2K.
FH 2K.
See specifications
Special Price £885.36 £737.80 £1,041.60 £868.00
2 kN Maximum capacity
1 N readout
0,5% Measuring accuracy
3 m
Case
150%
Yes
Yes
Yes
Yes
Yes
40
24
External loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
1,2 kg
10 °C / 40 °C
Calibration Certificate / Verification
£173.40
£173.40
£324.70
Special Price £885.36 £737.80 £1,041.60 £868.00
FH 5K.
FH 5K.
FH 5K.
See specifications
Special Price £1,125.06 £937.55 £1,323.60 £1,103.00
5 kN Maximum capacity
1 N readout
0,5% Measuring accuracy
3 m
Case
150%
Yes
Yes
Yes
Yes
Yes
40
24
External loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
1,8 kg
10 °C / 40 °C
Calibration Certificate / Verification
£243.10
£243.10
£427.55
Special Price £1,125.06 £937.55 £1,323.60 £1,103.00
FH 10K.
FH 10K.
FH 10K.
See specifications
Special Price £1,204.62 £1,003.85 £1,417.20 £1,181.00
10 kN Maximum capacity
5 N readout
0,5% Measuring accuracy
3 m
Case
150%
Yes
Yes
Yes
Yes
Yes
40
24
External loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
1,4 kg
10 °C / 40 °C
Calibration Certificate / Verification
£317.05
£317.05
£471.75
Special Price £1,204.62 £1,003.85 £1,417.20 £1,181.00
FH 20K.
FH 20K.
FH 20K.
See specifications
Special Price £1,212.78 £1,010.65 £1,426.80 £1,189.00
20 kN Maximum capacity
10 N readout
0,5% Measuring accuracy
3 m
Case
150%
Yes
Yes
Yes
Yes
Yes
40
24
External loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
1,6 kg
10 °C / 40 °C
Calibration Certificate / Verification
£317.05
£317.05
£471.75
Special Price £1,212.78 £1,010.65 £1,426.80 £1,189.00
FH 50K.
FH 50K.
FH 50K.
See specifications
Special Price £1,416.78 £1,180.65 £1,666.80 £1,389.00
50 kN Maximum capacity
10 N readout
0,5% Measuring accuracy
3 m
Case
150%
Yes
Yes
Yes
Yes
Yes
40
24
External loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
2,6 kg
10 °C / 40 °C
Calibration Certificate / Verification
£317.05
£317.05
£471.75
Special Price £1,416.78 £1,180.65 £1,666.80 £1,389.00
FH 100K.
FH 100K.
FH 100K.
See specifications
Special Price £1,488.18 £1,240.15 £1,750.80 £1,459.00
100 kN Maximum capacity
50 N readout
0,5% Measuring accuracy
3 m
Case
150%
Yes
Yes
Yes
Yes
Yes
40
24
External loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
11 kg
10 °C / 40 °C
Calibration Certificate / Verification
£350.20
£350.20
£515.95
Special Price £1,488.18 £1,240.15 £1,750.80 £1,459.00
pencil-alt

Description

Sauter FH-M Force Meter features a "peak hold" function, which allows the display of the maximum load. It also has a "push & pull" function that can measure both tension and compression forces. The device can store up to ten measurement results and calculate average, minimum, and maximum. The FH-S has a powerful battery and can operate for up to 40 hours without recharging. See also the FH-S model for a version designed for lower forces with internal load cells.

Connection:
Supplied as standard with RS232 and USB interfaces. Can be mounted on all SAUTER force meter stands.

Power Supply:
The force meter comes standard with a charger and rechargeable battery.

Functions:
- "Peak hold" function.
- "Track mode" for continuous measurement.
- Measures both push and pull forces.
- Adjustable upper and lower limit values.

Features:
- Supports multiple units (N, kgf, lbf).
- Comes with a set of standard accessories.
- Memory for 10 values.

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-fh-m
Type Force gauge
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Battery Included Yes
Battery life (hours) 40
Battery life (hours) with backlight 24
Internal/External Loadcells External loadcells
Included in the delivery Case
Overload Protection 150%
Temperature 10 °C / 40 °C
Peak function Yes
nan Yes
Average function Yes
Limit function Yes
Cable length 3 m
assembly Threaded hole M12
Output control No
Data Output RS-232 (Included), USB (Included)
Power Supply Charger (Incl.), Rechargeable battery (Incl.)
