For the past 10 years, we have served over 40,000 customers with the sale of scales and other measuring equipment across all industries. Use us whenever you need to find the exact product that matches your needs or if you have general questions. We value good, traditional customer service..
Service and quality are of course very important, but we also understand that being competitive on price matters. At ExpertsinScales, we consider it a key part of our service to offer the market’s best price on all our products—regardless of the size. For this reason, we offer free shipping on ALL orders, so you can always see the true product price without any hidden fees.

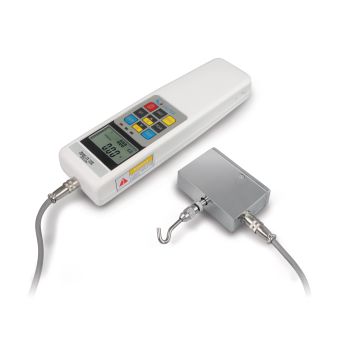

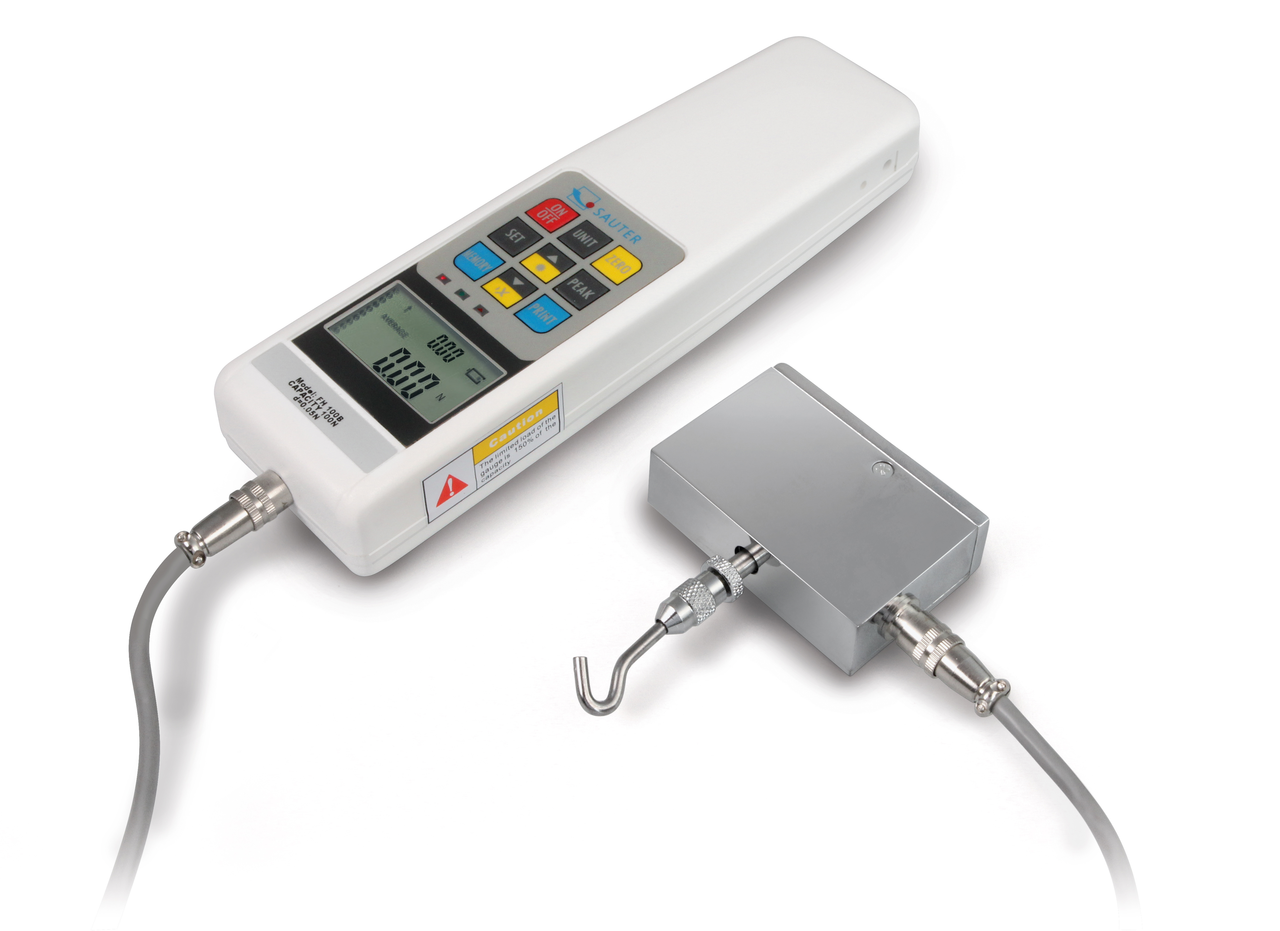

- The force measuring device consists of a combination of an external measuring sensor and a high-resolution display unit- It is ideal for measuring smaller forces or loads in machines and equipment.- Peak-hold funct ....
Read the full description
- The force gauge consists of a combination of an external measuring sensor and a high-resolution display unit. - It is ideal for measuring small forces or loads in machines and equipment. - Peak-hold function to record the maximum value. - Push & Pull function for measuring tensile and compressive forces. - Mini-statistics package: calculates an average of up to 10 measurement results, as well as minimum and maximum values. - Limit value function: set an upper/lower limit value, supported by visual and acoustic signals to aid the measurement process. - Internal battery operation, including a charger. - Depending on the display unit, only one measuring cell can be connected. - Compatible with all SAUTER test stands (please specify the test stand when ordering).
Technical Data
- External sensor: Dimensions LxWxH 76x65x22 mm. - Compatible with all SAUTER test stands. - Cable length to display unit approx. 2 m. - Tolerance: 1 % of maximum. - Can display results in the following units: N, kg, lb. - Overload protection: 150 % of maximum.
NOTE: Only 1 hook is included with the force cell. Hook number 2 can be purchased separately.
Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
