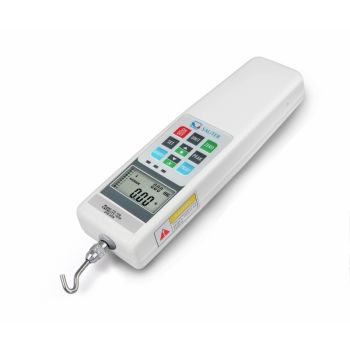

Force Gauge Sauter FH-S

£512.00 - £512.00
Choose model
Kern Standard
Mains adapter Rechargeable battery pack RS 232 data interface USB data interface Peak hold function Scan mode Push and Pull Internal memory Measuring with tolerance range (function to set limits) ZERO Statistics
Kern Options
Certificate_DAkkS_4_days Certificate_ISO_4_days PC software
Short Description
Sauter FH-S Force Gauge features a "peak hold" function, allowing display of the maximum load. It also has a "push & pull" function to measure both tensile and compressive forces. The device can store up to ten measurement results and calculate average, minimum, and maximum values. The FH-S has a po .... Read the full description
FH 2.
FH 2.
FH 2.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
2 N Maximum capacity
0,001 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,55 kg
10 °C / 40 °C
Calibration Certificate / Verification
£261.80
£143.65
£143.65
Special Price £522.24 £435.20 £614.40 £512.00
FH 5.
FH 5.
FH 5.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
5 N Maximum capacity
0,001 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,55 kg
10 °C / 40 °C
Calibration Certificate / Verification
£261.80
£143.65
£143.65
Special Price £522.24 £435.20 £614.40 £512.00
FH 10.
FH 10.
FH 10.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
10 N Maximum capacity
0,005 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,60 kg
10 °C / 40 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £522.24 £435.20 £614.40 £512.00
FH 20.
FH 20.
FH 20.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
20 N Maximum capacity
0,01 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,60 kg
10 °C / 40 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £522.24 £435.20 £614.40 £512.00
FH 50.
FH 50.
FH 50.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
50 N Maximum capacity
0,01 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,55 kg
10 °C / 40 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £522.24 £435.20 £614.40 £512.00
FH 100.
FH 100.
FH 100.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
100 N Maximum capacity
0,05 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,55 kg
10 °C / 40 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £522.24 £435.20 £614.40 £512.00

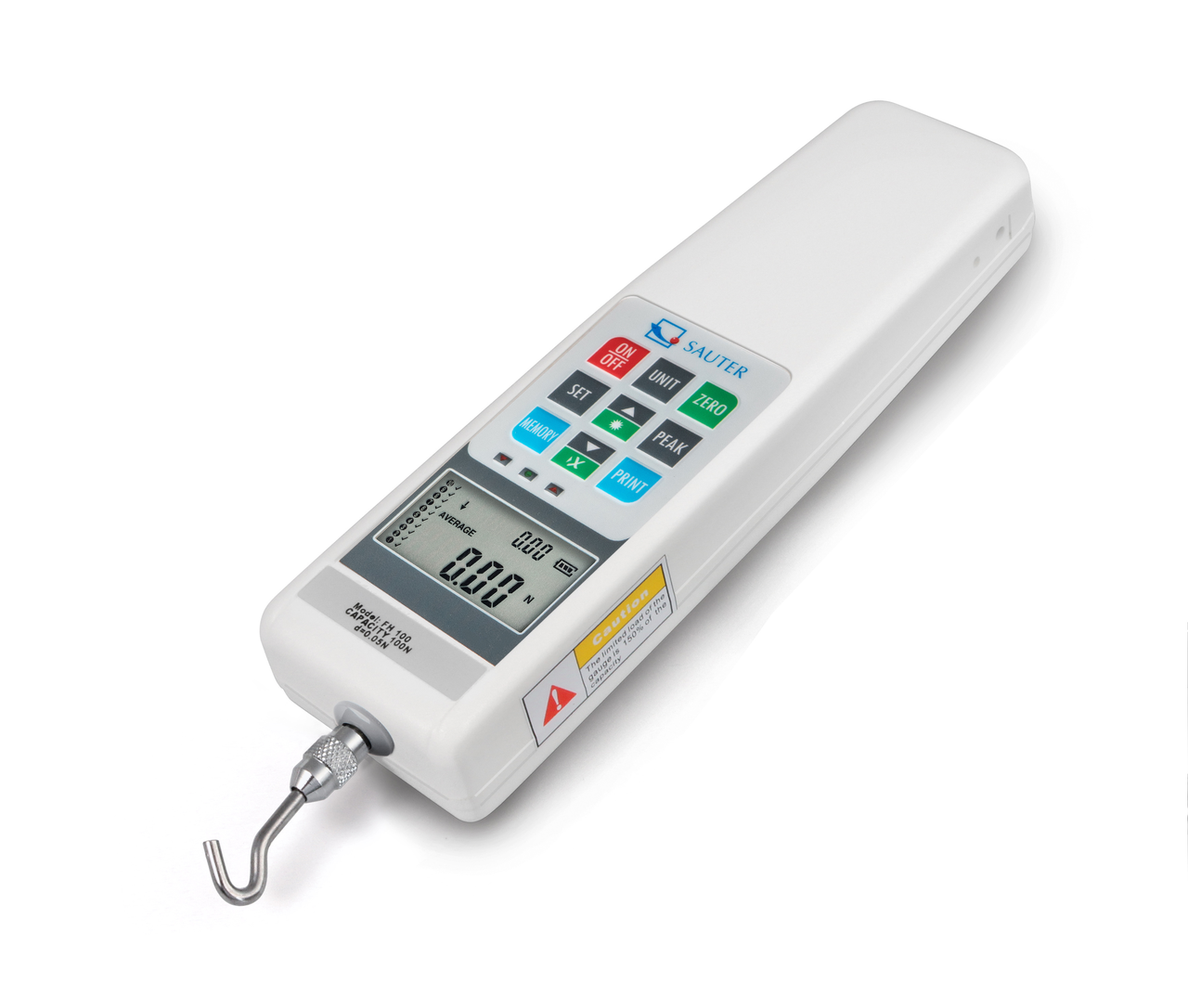

FH 200.
FH 200.
FH 200.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
200 N Maximum capacity
0,1 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,55 kg
10 °C / 40 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £522.24 £435.20 £614.40 £512.00
FH 500.
FH 500.
FH 500.
See specifications
Special Price £522.24 £435.20 £614.40 £512.00
500 N Maximum capacity
0,1 N readout
0,5% Measuring accuracy
Case, Standard set of attachments
150%
Yes
Yes
Yes
Yes
Yes
40
24
Internal loadcells
N
Ja - 10 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
0,55 kg
10 °C / 40 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £522.24 £435.20 £614.40 £512.00
pencil-alt

Description

Force Gauge Sauter FH-S is equipped with a "peak hold" function, which allows displaying the maximum load. It also has a "push & pull" function, which can measure both tensile and compressive force. The unit can store up to ten measurement results and calculate the average, minimum, and maximum. FH-S has a powerful battery and can operate for up to 40 hours without charging. See also the FH-M model for a version with external load cells for measuring higher maximum forces.

Connection:
Delivered as standard with RS232 and USB connections. Can be mounted on all SAUTER force gauge stands.

Power Supply:
The force gauge is delivered as standard with charger and rechargeable battery.

Functions:
- "Peak hold" function.
- "Track mode" for continuous measurement.
- Measurement of both push and pull forces.
- Adjustable upper and lower limit values.

Features:
- Supports multiple measurement units (N, kgf, lbf).
- A set of standard accessories is included with delivery.
- Memory for 10 values.

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-fh-s
Type Force gauge
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Battery Included Yes
Battery life (hours) 40
Battery life (hours) with backlight 24
Internal/External Loadcells Internal loadcells
Included in the delivery Case, Standard set of attachments
Overload Protection 150%
Temperature 10 °C / 40 °C
Peak function Yes
nan Yes
Average function Yes
nan Yes
Limit function Yes
Cable length 3 m
assembly External thread M6
Output control No
Data Output RS-232 (Included), USB (Included)
Power Supply Charger (Incl.), Rechargeable battery (Incl.)
