Force Gauge Sauter FL-M

£712.00 - £859.00
Choose model
Kern Standard
Analogue interface Mains adapter Rechargeable battery pack RS 232 data interface USB data interface Peak hold function Push and Pull Internal memory Measuring with tolerance range (function to set limits) ZERO Dimensional units
Kern Options
Certificate_ISO_4_days PC software
Short Description
Sauter FL-M force gauge can measure both tensile and compressive forces and features a "peak hold" function, allowing the display of the maximum load. The device can store up to 500 measurement results. The FL model is equipped with continuous analog output, making it possible to integrate the force .... Read the full description
FL 2K
FL 2K
FL 2K
See specifications
Special Price £726.24 £605.20 £854.40 £712.00
2,5 kN Maximum capacity
1 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
External loadcells
N, lbf, ozf, kN, kgf
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,55 kg
15 °C / 35 °C
Calibration Certificate / Verification
£173.40
£173.40
£324.70
Special Price £726.24 £605.20 £854.40 £712.00

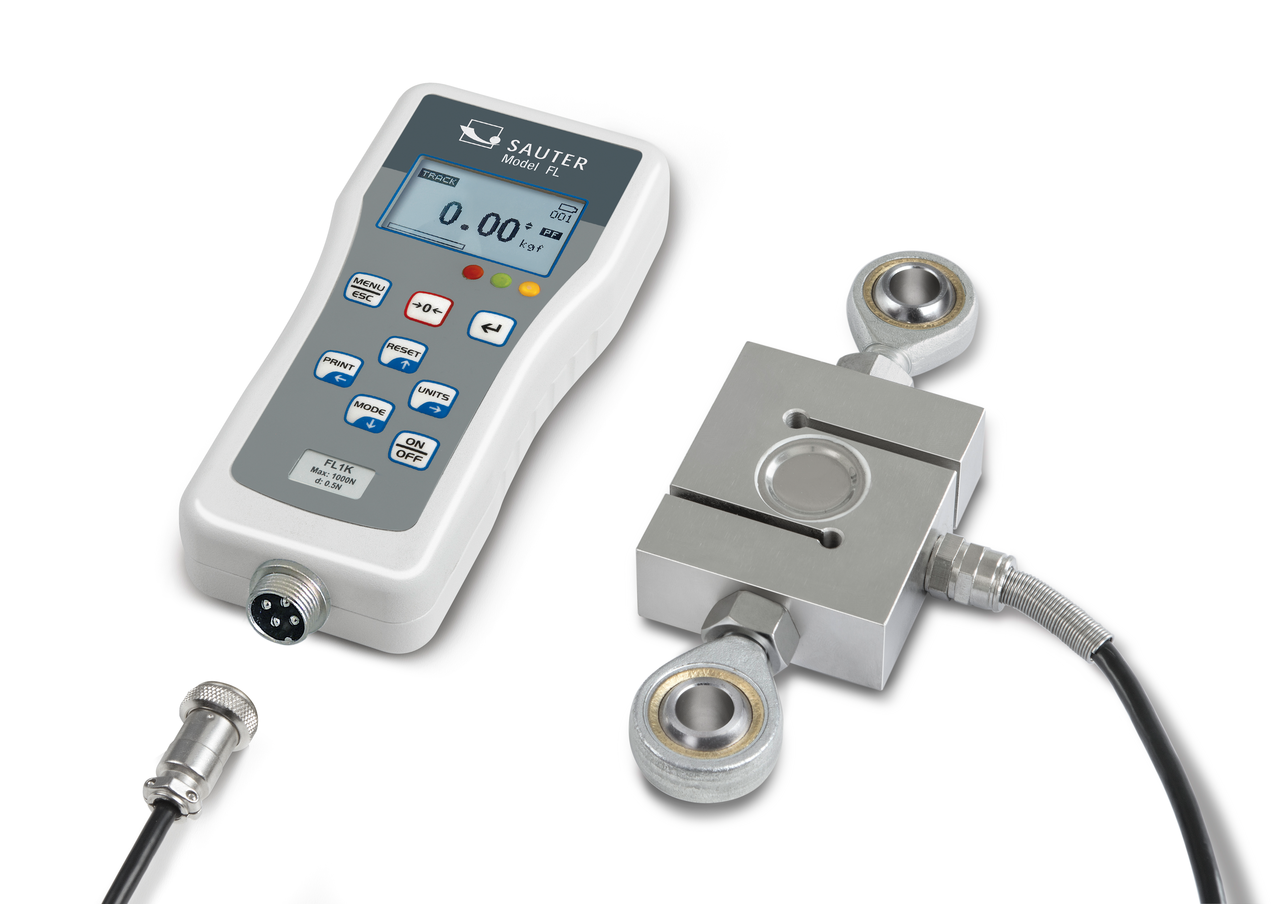

FL 20K
FL 20K
FL 20K
See specifications
Special Price £876.18 £730.15 £1,030.80 £859.00
20 kN Maximum capacity
10 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
External loadcells
N, lbf, ozf, kgf
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
1,6 kg
15 °C / 35 °C
Calibration Certificate / Verification
£317.05
£471.75
Special Price £876.18 £730.15 £1,030.80 £859.00
FL 10K
FL 10K
FL 10K
See specifications
Special Price £876.18 £730.15 £1,030.80 £859.00
10 kN Maximum capacity
5 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
External loadcells
N, lbf, ozf, kgf
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
1,6 kg
15 °C / 35 °C
Calibration Certificate / Verification
£317.05
£471.75
Special Price £876.18 £730.15 £1,030.80 £859.00
FL 5K
FL 5K
FL 5K
See specifications
Special Price £788.46 £657.05 £927.60 £773.00
5 kN Maximum capacity
2 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
External loadcells
N, lbf, ozf, kgf
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
1,4 kg
15 °C / 35 °C
Calibration Certificate / Verification
£243.10
£427.55
Special Price £788.46 £657.05 £927.60 £773.00
pencil-alt

Description

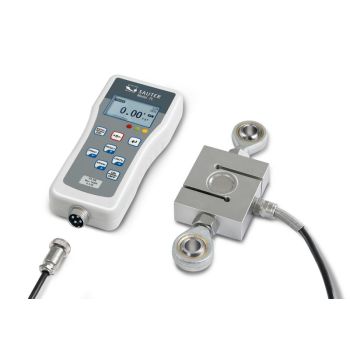

Sauter FL-M Force Gauge can measure both tension and compression forces and is equipped with a "peak hold" function, which allows the display of the maximum load. The unit can store up to 500 measurement results. The FL model features continuous analog output, enabling integration of the force gauge into other systems. See also the FL-S model for a version with an internal load cell for measuring lower maximum forces.

Connectivity:
Comes standard with RS232 and USB connections. Can be mounted on all Sauter force gauge stands.

Power Supply:
The force gauge is supplied as standard with a charger and rechargeable battery.

Features:
  • Peak hold function
  • Track mode for continuous measurement
  • Measures both tension and compression
  • Adjustable upper and lower limit values

Characteristics:
  • Comes with a set of standard accessories
  • Memory for 500 values
  • Analog data output
Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-fl-m
Type Force gauge
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Battery Included Yes
Battery life (hours) 10
Battery life (hours) with backlight 8
Internal/External Loadcells External loadcells
Included in the delivery Case
Overload Protection 120%
Temperature 15 °C / 35 °C
Peak function Yes
nan Yes
Average function No
nan Yes
Limit function Yes
assembly External thread M6
Output control Yes
Data Output Analogue output /IO (Included), RS-232 (Included), USB (Included)
Power Supply Charger (Incl.), Rechargeable battery (Incl.)
