Force Gauge Sauter FL-S

£495.00 - £564.00
Choose model
Kern Standard
Analogue interface Mains adapter Rechargeable battery pack RS 232 data interface USB data interface Peak hold function Push and Pull Internal memory Measuring with tolerance range (function to set limits) ZERO Dimensional units
Kern Options
Certificate_ISO_4_days PC software
Short Description
The Sauter FL-S force gauge can measure both tensile and compressive forces and is equipped with a "peak hold" function, which allows the display of the maximum load. The device can store up to 500 measurement results. The FL model features continuous analog output, making it possible to integrate t .... Read the full description

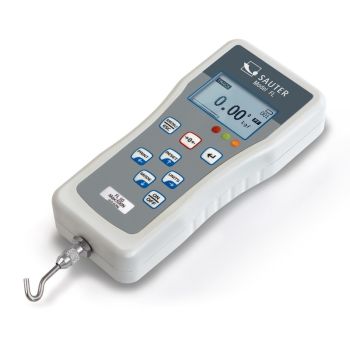

FL 5
FL 5
FL 5
See specifications
Special Price £504.90 £420.75 £594.00 £495.00
5 N Maximum capacity
0,002 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,55 kg
15 °C / 35 °C
Calibration Certificate / Verification
£261.80
£143.65
£143.65
Special Price £504.90 £420.75 £594.00 £495.00
FL 10
FL 10
FL 10
See specifications
Special Price £504.90 £420.75 £594.00 £495.00
10 N Maximum capacity
0,005 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,55 kg
15 °C / 35 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £504.90 £420.75 £594.00 £495.00
FL 20
FL 20
FL 20
See specifications
Special Price £504.90 £420.75 £594.00 £495.00
25 N Maximum capacity
0,01 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,55 kg
15 °C / 35 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £504.90 £420.75 £594.00 £495.00

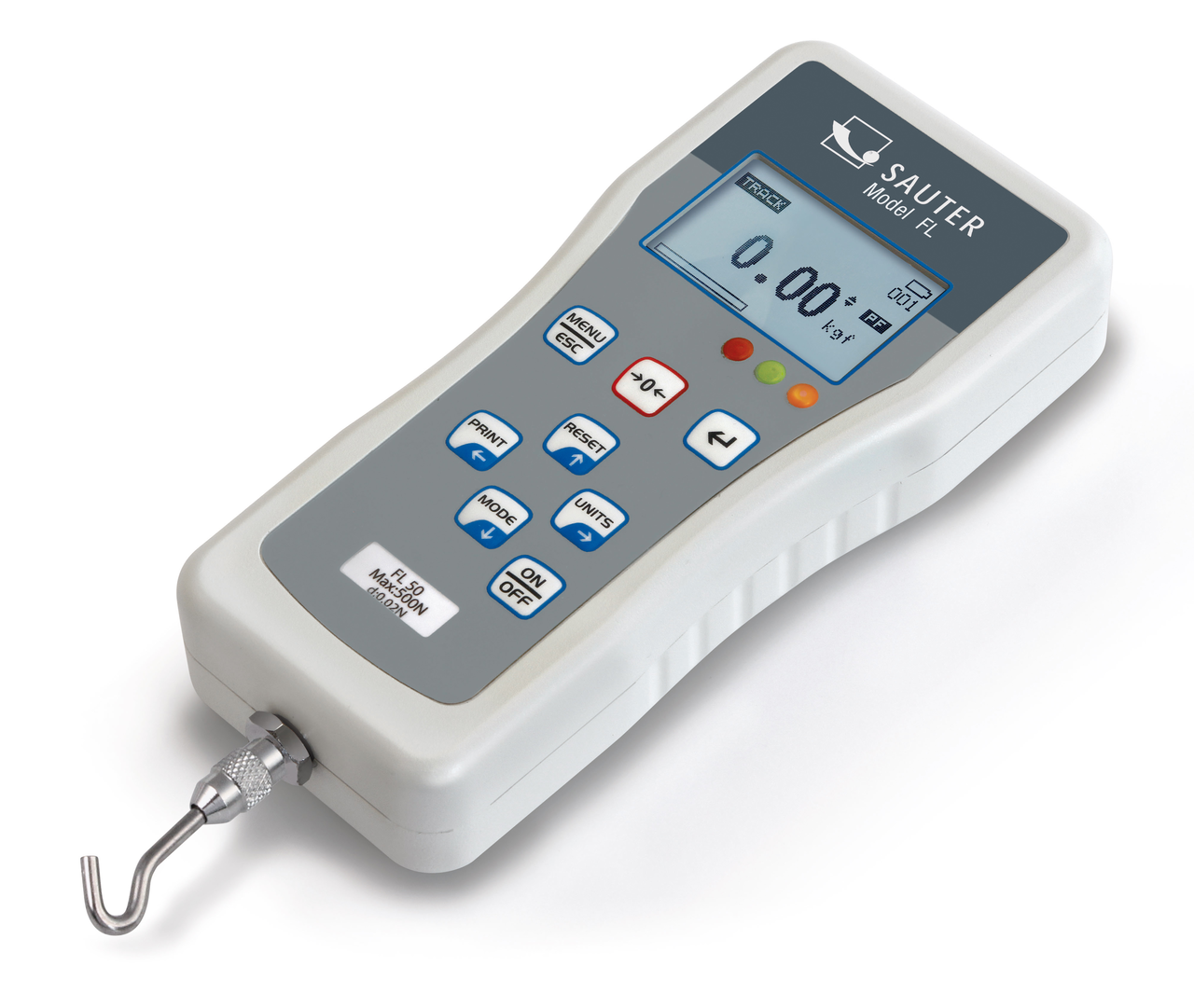

FL 50
FL 50
FL 50
See specifications
Special Price £504.90 £420.75 £594.00 £495.00
50 N Maximum capacity
0,02 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,50 kg
15 °C / 35 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £504.90 £420.75 £594.00 £495.00
FL 100
FL 100
FL 100
See specifications
Special Price £504.90 £420.75 £594.00 £495.00
100 N Maximum capacity
0,05 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,55 kg
15 °C / 35 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £504.90 £420.75 £594.00 £495.00
FL 200
FL 200
FL 200
See specifications
Special Price £504.90 £420.75 £594.00 £495.00
250 N Maximum capacity
0,1 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,55 kg
15 °C / 35 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £504.90 £420.75 £594.00 £495.00
FL 500
FL 500
FL 500
See specifications
Special Price £504.90 £420.75 £594.00 £495.00
500 N Maximum capacity
0,2 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,60 kg
15 °C / 35 °C
Calibration Certificate / Verification
£143.65
£261.80
£143.65
Special Price £504.90 £420.75 £594.00 £495.00
FL 1K
FL 1K
FL 1K
See specifications
Special Price £575.28 £479.40 £676.80 £564.00
1 kN Maximum capacity
0,5 N readout
0,2% Measuring accuracy
Case
120%
Yes
Yes
No
Yes
No
10
8
External loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
0,55 kg
15 °C / 35 °C
Calibration Certificate / Verification
£173.40
£173.40
£324.70
Special Price £575.28 £479.40 £676.80 £564.00
pencil-alt

Description

Sauter FL-S Force Meter can measure both tension (pull) and compression (push) forces and features a peak hold function to display the maximum load. The device can store up to 500 measurement results. The FL model has continuous analog output, allowing integration into other systems. See also the FL-M model for a version with external load cells for measuring higher maximum forces.

Connection:
Supplied as standard with RS232 and USB connections. Can be mounted on all Sauter force meter stands.

Power Supply:
The force meter is supplied with a charger and rechargeable battery as standard.

Functions:
- Peak hold function
- Track mode for continuous measurement
- Measures both push and pull forces
- Adjustable upper and lower limits

Features:
- Comes with a set of standard accessories
- Memory for 500 values
- Analog data output

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-fl-s
Type Force gauge
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Battery Included Yes
Battery life (hours) 10
Battery life (hours) with backlight 8
Internal/External Loadcells Internal loadcells
Included in the delivery Case
Overload Protection 120%
Temperature 15 °C / 35 °C
Peak function Yes
nan Yes
Average function No
nan Yes
Limit function Yes
assembly External thread M6
Output control Yes
Data Output Analogue output /IO (Included), RS-232 (Included), USB (Included)
Power Supply Charger (Incl.), Rechargeable battery (Incl.)
