Torque Gauge Sauter DA

£1,693.00 - £1,702.00
Choose model
Kern Standard
Mains adapter Rechargeable battery pack RS 232 data interface USB data interface Peak hold function Internal memory Measuring with tolerance range (function to set limits) ZERO Statistics Dimensional units
Kern Options
Certificate_ISO_4_days PC software
Short Description
Sauter DA torque tester for screw caps is optimized for precise testing of torque on packaging with screw caps. It is ideal for use in the food, cosmetics, and pharmaceutical industries. The tester allows comfortable and efficient testing of bottles and containers with a diameter between 15 mm and 1 .... Read the full description

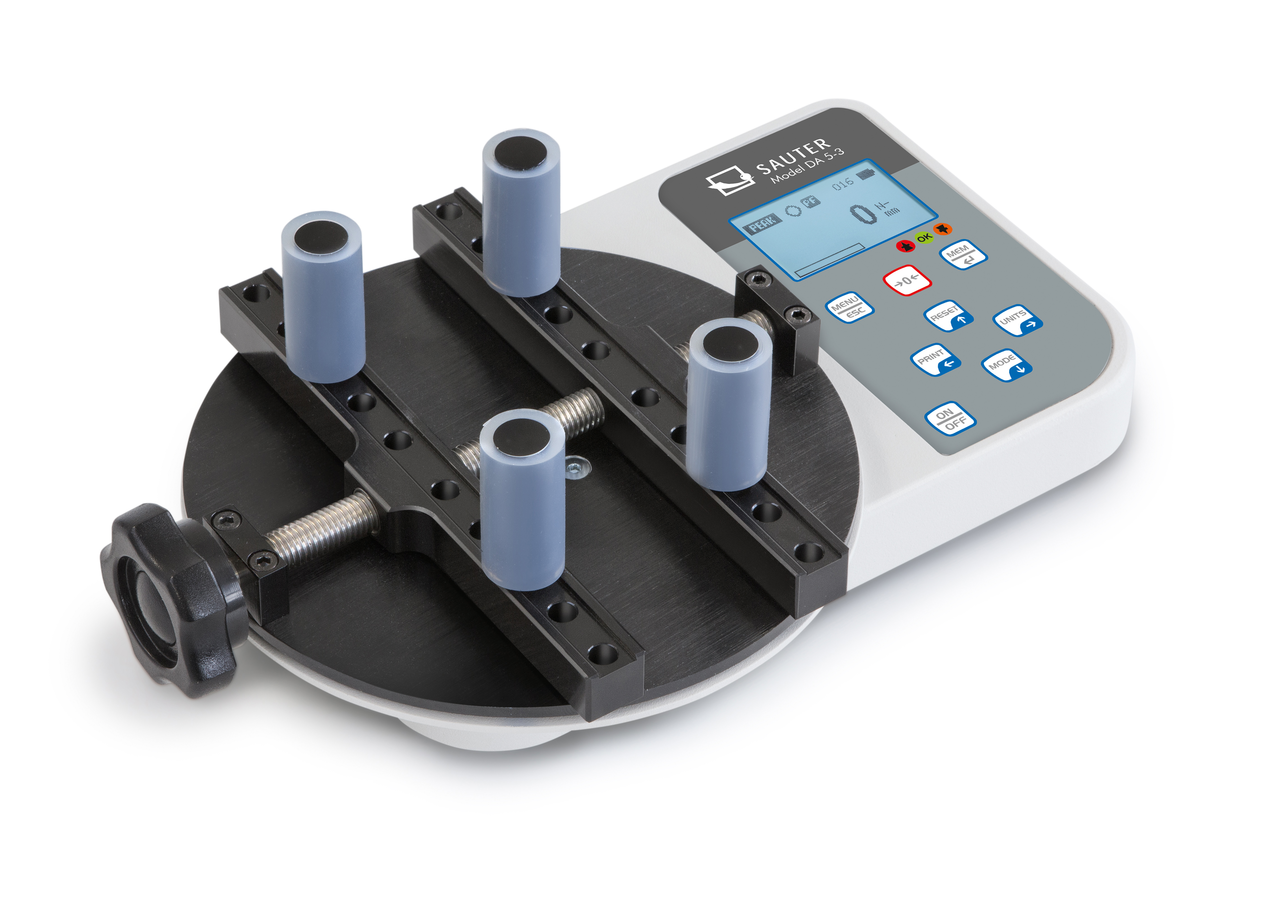

DA 10-3
DA 10-3
DA 10-3
See specifications
Special Price £1,726.86 £1,439.05 £2,031.60 £1,693.00
10 Nm Maximum capacity
0,002 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
16 cm
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
3,0 kg
15 °C / 35 °C
Calibration Certificate / Verification
£180.20
Special Price £1,726.86 £1,439.05 £2,031.60 £1,693.00
DA 5-3
DA 5-3
DA 5-3
See specifications
Special Price £1,736.04 £1,446.70 £2,042.40 £1,702.00
5 Nm Maximum capacity
0,001 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
16 cm
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
3,0 kg
15 °C / 35 °C
Calibration Certificate / Verification
£180.20
Special Price £1,736.04 £1,446.70 £2,042.40 £1,702.00

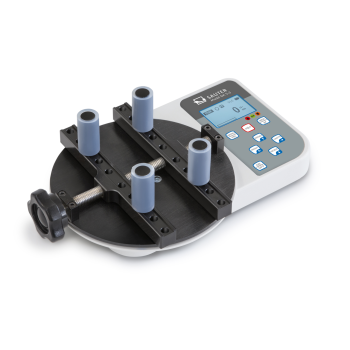

DA 1-4
DA 1-4
DA 1-4
See specifications
Special Price £1,736.04 £1,446.70 £2,042.40 £1,702.00
1 Nm Maximum capacity
0,0002 Nm readout
0,5% Measuring accuracy
Case
120%
Yes
No
No
Yes
No
18
14
16 cm
Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included)
3,0 kg
15 °C / 35 °C
Calibration Certificate / Verification
£180.20
Special Price £1,736.04 £1,446.70 £2,042.40 £1,702.00
pencil-alt

Description

Sauter DA Torque Meter for Screw Caps is optimized for precise torque testing of packaging with screw caps. It is ideal for use in the food, cosmetics, and pharmaceutical industries. The meter enables comfortable and efficient testing of bottles and containers with diameters between 15 mm and 160 mm and is suitable for measurements in both directions (clockwise and counterclockwise).

Connectivity:
Comes standard with RS232 and USB connections.

Power Supply:
The torque meter is supplied as standard with a power adapter and rechargeable battery.

Features:
  • Peak hold function
  • Track mode for continuous measurement
  • Individually adjustable upper and lower limits with visual and acoustic feedback

Characteristics:
  • Robust metal housing for use in demanding conditions
  • Four bottle clamps with rubber coating and quick-mount system for easy switching between bottle sizes
  • Internal memory for up to 500 measurements
Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-da
Type Force gauge
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Battery life (hours) 18
Battery life (hours) with backlight 14
Included in the delivery Case
Overload Protection 120%
Temperature 15 °C / 35 °C
Peak function Yes
nan No
Average function No
Limit function Yes
Output control No
Data Output RS-232 (Included), USB (Included)
Power Supply Charger (Incl.), Rechargeable battery (Incl.)
