| Manufacturer | Kern & Sohn |
| SKU | kern-obl-s |
| Type | Microscope |
Short Description

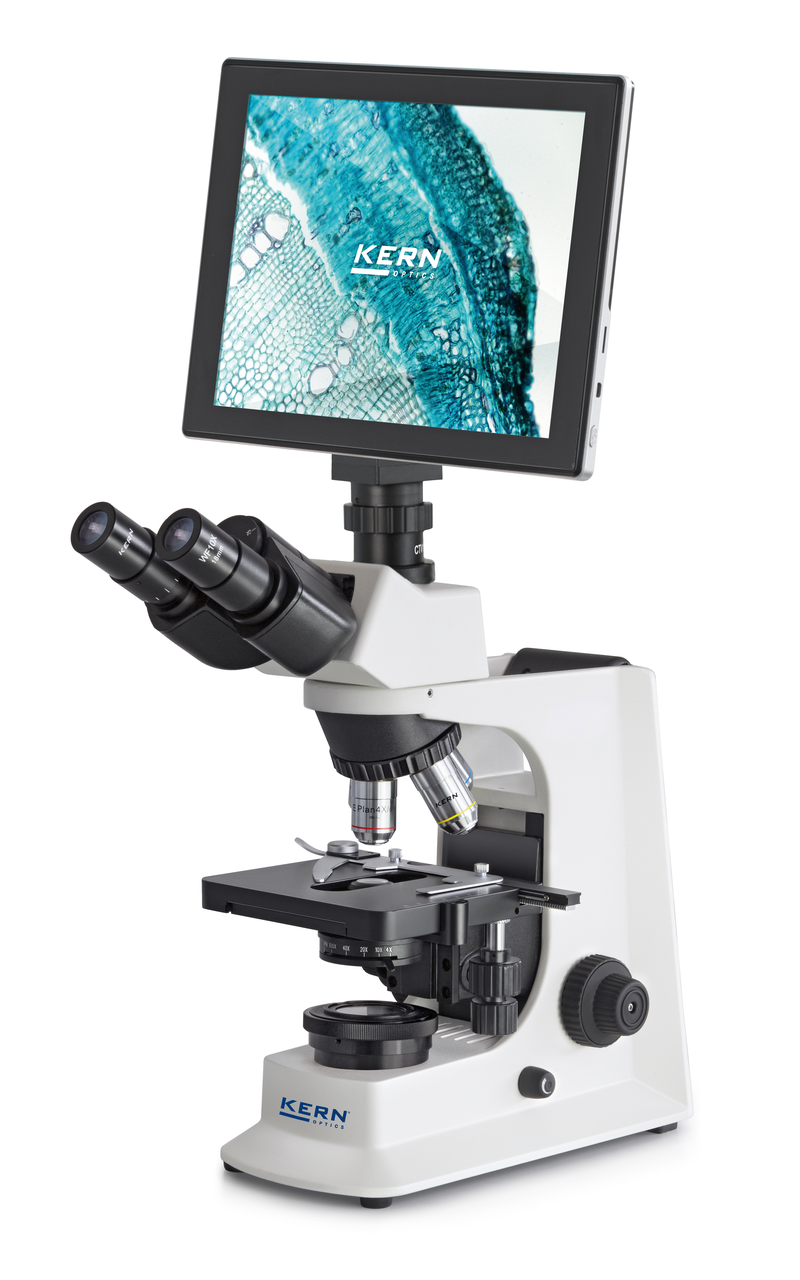

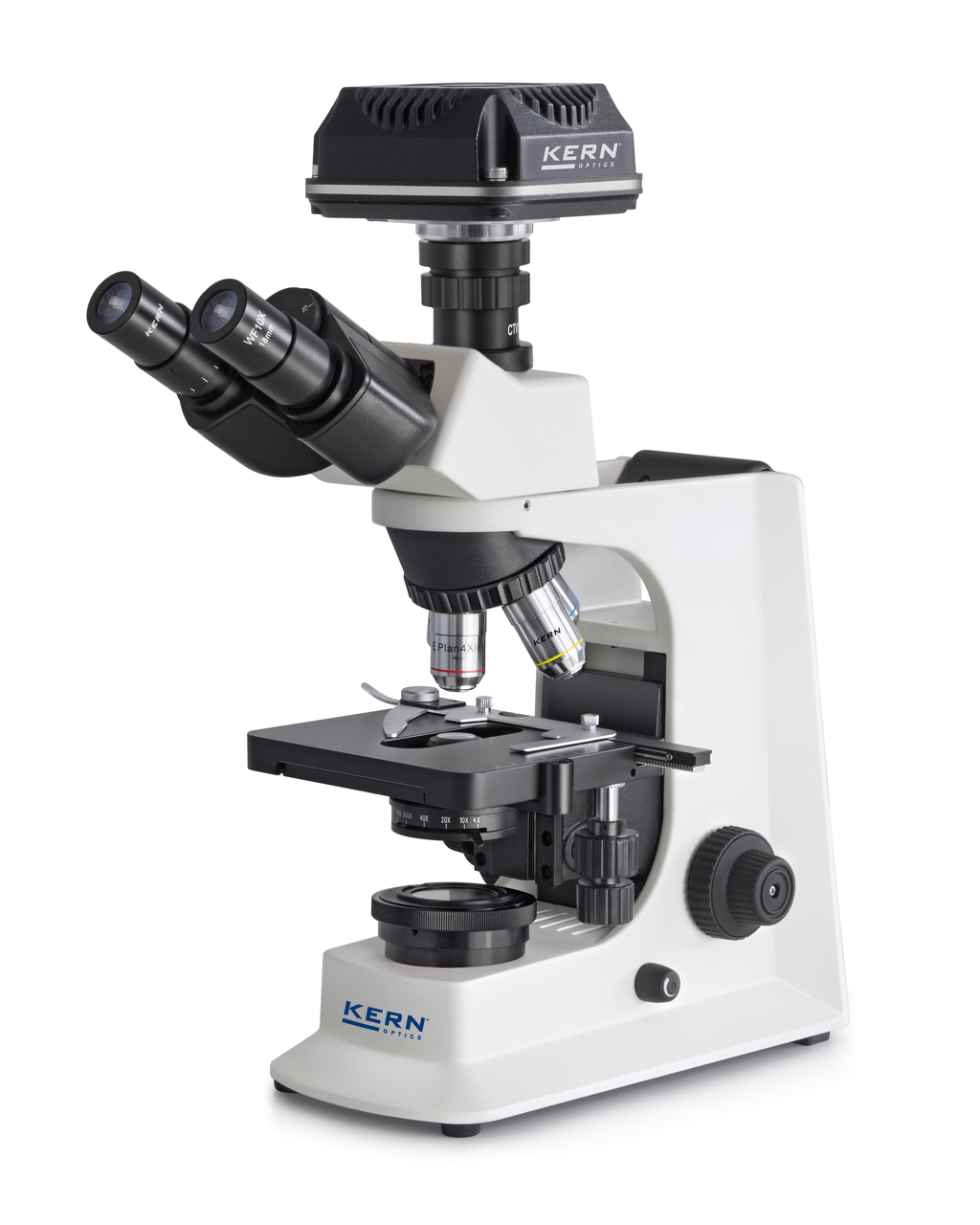

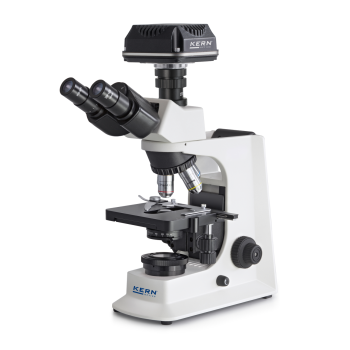

The OBL-S microscope set consists of a combination of the OBL 12/13 microscope with a C-mount adapter, camera, and microscope software.
KERN OBL Microscope – Transmitted Light Microscope OBL-12/OBL-13. The OBL-1 series stands out due to its infinity optical system and is therefore ideal for all ....
Read the full description
2-4 business days *
Free delivery
Description
The OBL-S microscope set consists of a combination of the OBL 12/13 microscope with a C-mount adapter, camera, and microscope software.
KERN OBL Microscope – Transmitted Light Microscope OBL-12/OBL-13. The OBL-1 series stands out due to its infinity optical system and is therefore ideal for all transmitted light applications for the most demanding users. The robust and ergonomic stand ensures safe and comfortable operation.
Depending on the application, there is a selection of models with powerful, continuously dimmable 3 W LED or 20 W halogen illumination (Philips). The fixed, pre-centered, and focusable 1.25 ABBE condenser with iris diaphragm and field diaphragm allows simplified Köhler illumination without needing to adjust the center. The large mechanical stage and specimen holder can hold up to two samples simultaneously and can be quickly and easily focused using the coaxial coarse and fine focus knobs on both sides. A protective dust cover, eyecups, and multilingual user manuals are included in the delivery scope. A C-mount adapter is required to connect a camera to the trinocular version.
- Infinity E-plan objectives
- 4x / 0.10 W.D. 12.1 mm
- 10x / 0.25 W.D. 2.1 mm
- 40x / 0.65 (spring-loaded) W.D. 0.58 mm
- 100x / 1.25 (oil) (spring-loaded) W.D. 0.19 mm
Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
