| Manufacturer | Kern & Sohn |
| SKU | kern-obn-s |
| Type | Microscope |
Short Description

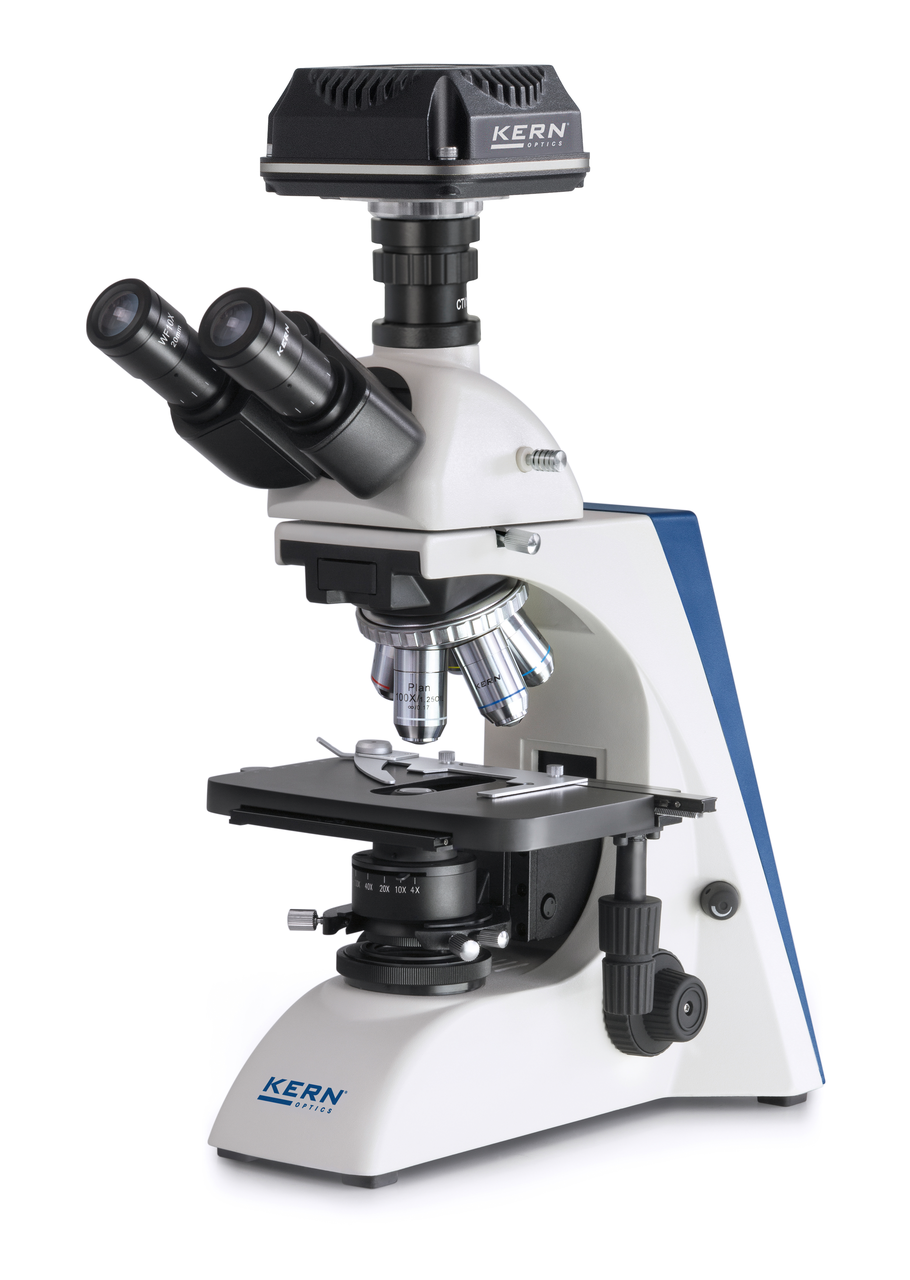

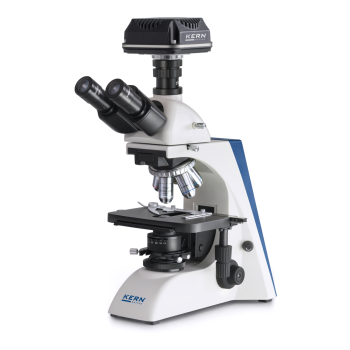

The OBN-S microscope set consists of a combination of the OBE 12*13 microscope with a C-mount adapter, camera, and microscope software.
The OBN series is characterized by its unparalleled and consistently high quality and ergonomic design. The many modular components give the OBN series high vers ....
Read the full description
2-4 business days *
Free delivery
Description
The OBN-S microscope set consists of a combination of the OBE 12*13 microscope with a C-mount adapter, camera, and microscope software.
The OBN series is characterized by its unparalleled and consistently high quality and ergonomic design. The many modular components give the OBN series high versatility for the professional user.
Depending on the application, you can choose between models with powerful, continuously dimmable 3 W LED or 20 W halogen illumination (Philips).
The halogen variant is also available as a pre-configured phase contrast microscope, which, thanks to the combination of a professional 5-position condenser turret, phase contrast condenser, and Infinity-Plan phase contrast objectives, becomes a high-quality, fully equipped microscope for all contrast method applications.
This series features professional Köhler illumination with an adjustable field diaphragm and a centering, height-adjustable 1.25 Abbe condenser with an adjustable iris diaphragm.
The very large mechanical stage with ergonomic, coaxial coarse and fine adjustment on both sides allows quick and precise positioning and focusing of your sample.
A range of modular systems, e.g., swing-out condenser, various eyepieces, objectives, color filters, phase contrast units, a darkfield condenser, a simple polarizing unit up to complete fluorescence units, are available as accessories.
The centering eyepiece for phase contrast adjustment, dust cover, eyecups, and multilingual operating manual are included in the delivery scope.
A C-mount adapter is required to connect a camera, which can be selected from the following model accessories list.
Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
