Force Gauge Sauter FL-G (For Gravestones)

£599.00 - £703.00
Choose model
Kern Standard
Analogue interface Mains adapter Rechargeable battery pack USB data interface Peak hold function Push and Pull Internal memory Measuring with tolerance range (function to set limits) ZERO Dimensional units
Kern Options
Certificate_DAkkS_4_days Certificate_ISO_4_days PC software
Short Description
Sauter FL 500 G force gauge – ideal for testing gravestones in accordance with VSG 4.7. The force gauge comes with a handle and a pressure plate, and can store up to 500 measurement results, making it suitable for documentation and certification. The FL model features continuous analog output, all .... Read the full description

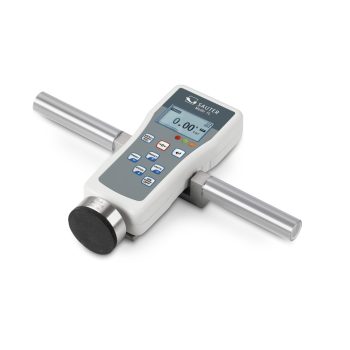

FL 500G
FL 500G
FL 500G
See specifications
Special Price £610.98 £509.15 £718.80 £599.00
500 N Maximum capacity
0,2 N readout
0,2% Measuring accuracy
Pressure plate, Handle
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
1,8 kg
15 °C / 35 °C
Calibration Certificate / Verification
£261.80
£143.65
£143.65
Special Price £610.98 £509.15 £718.80 £599.00

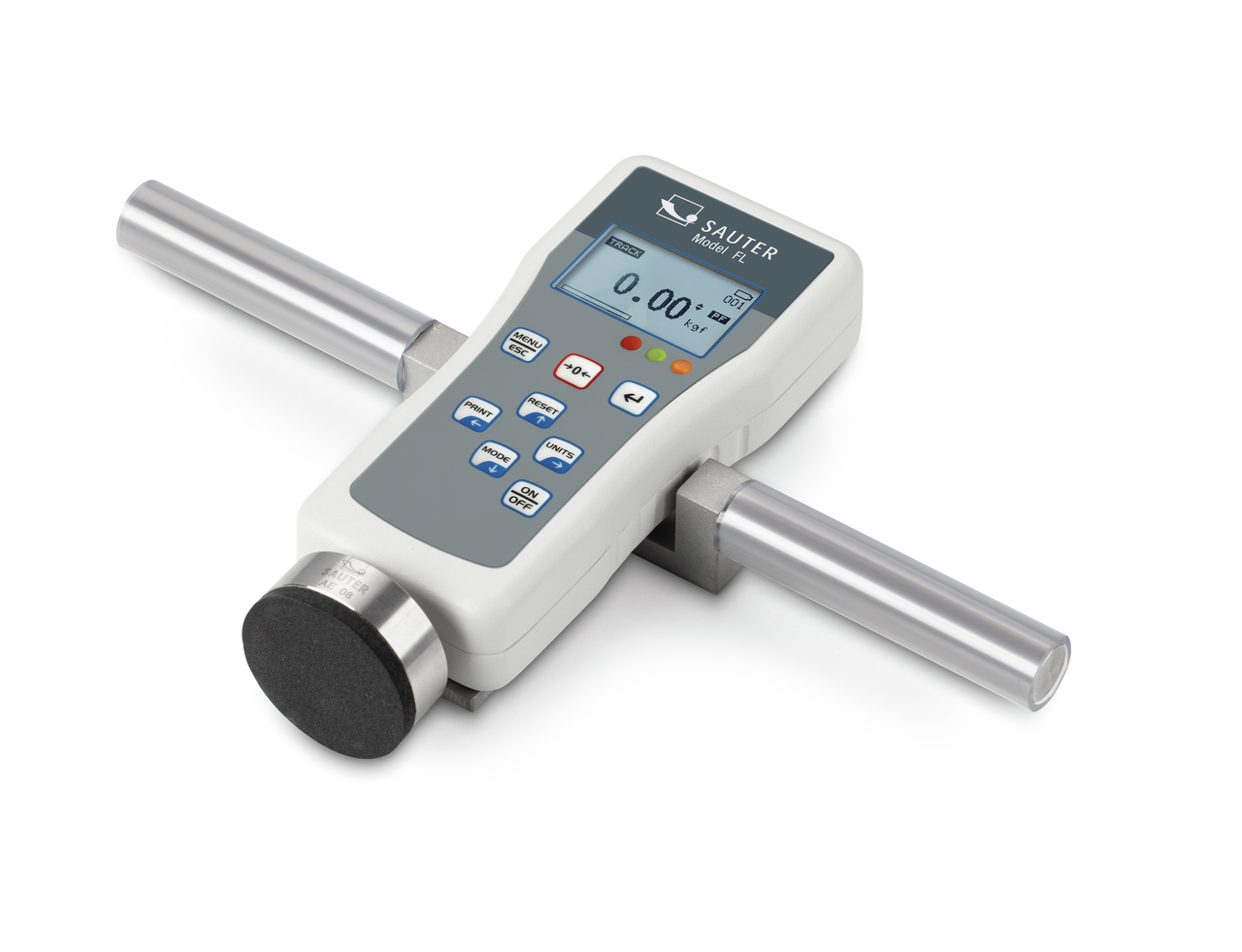

FL 1KG
FL 1KG
FL 1KG
See specifications
Special Price £717.06 £597.55 £843.60 £703.00
1 kN Maximum capacity
0,5 N readout
0,2% Measuring accuracy
Pressure plate, Handle
120%
Yes
Yes
No
Yes
No
10
8
Internal loadcells
N
Ja - 500 værdier
Yes
Charger (Incl.), Rechargeable battery (Incl.)
RS-232 (Included), USB (Included), Analogue output /IO (Included)
1,8 kg
15 °C / 35 °C
Calibration Certificate / Verification
£173.40
£173.40
£324.70
Special Price £717.06 £597.55 £843.60 £703.00
pencil-alt

Description

Force Gauge Sauter FL-G is suitable for testing gravestones in accordance with VSG 4.7. The force gauge comes with a handle and a pressure plate. The device can store up to 500 measurement results, making it ideal for documentation and certification. The FL model is equipped with continuous analog output, allowing integration into other systems.

Connection:
Supplied as standard with USB connection.

Power Supply:
The force gauge is supplied with a charger and rechargeable battery.

Functions:
- Peak hold function
- Track mode for continuous measurement
- Measurement of both tension and compression
- Adjustable upper and lower limits

Features:
- Suitable for gravestone testing in accordance with VSG 4.7
- Supplied with handle and pressure plate
- Memory for 500 values

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-fl-g
Type Force gauge
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Battery Included Yes
Battery life (hours) 10
Battery life (hours) with backlight 8
Internal/External Loadcells Internal loadcells
Included in the delivery Pressure plate, Handle
Overload Protection 120%
Temperature 15 °C / 35 °C
Peak function Yes
nan Yes
Average function No
Limit function Yes
Output control Yes
Data Output Analogue output /IO (Included), RS-232 (Included), USB (Included)
Power Supply Charger (Incl.), Rechargeable battery (Incl.)
