Load Cell Sauter - Anodized aluminium - CP-P3

£69.00 - £69.00
Choose model
Standard
IP65 - IND IP65 - LC
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CP P3 – single-point load cell with 4-wire connection, suitable for platform sizes up to 35 × 40 cm. It can be used for many applications, such as price computing scales, bench scales, and other precision applications. The load cell has a 3 m cable and a nominal sensitivity of 2 mV/V. OIM .... Read the full description

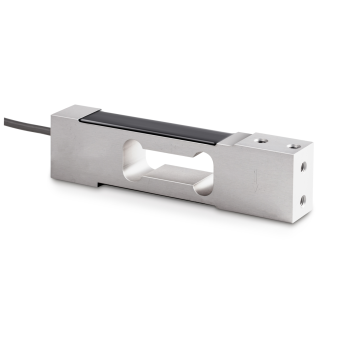

CP 30-3P3
CP 30-3P3
CP 30-3P3
See specifications
Special Price £74.52 £62.10 £82.80 £69.00
30 kg Nominal Value
3 m Cable length
350×400 mm Max weighing plate size
Push
C3
6 g
3000 e
6-wire
2 mV/V
Yes (IP65)
0,40 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £74.52 £62.10 £82.80 £69.00
CP 40-3P3
CP 40-3P3
CP 40-3P3
See specifications
Special Price £74.52 £62.10 £82.80 £69.00
40 kg Nominal Value
3 m Cable length
350×400 mm Max weighing plate size
Push
C3
8 g
3000 e
6-wire
2 mV/V
Yes (IP65)
0,40 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £74.52 £62.10 £82.80 £69.00
CP 50-3P3
CP 50-3P3
CP 50-3P3
See specifications
Special Price £74.52 £62.10 £82.80 £69.00
50 kg Nominal Value
3 m Cable length
350×400 mm Max weighing plate size
Push
C3
10 g
3000 e
6-wire
2 mV/V
Yes (IP65)
0,40 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £74.52 £62.10 £82.80 £69.00

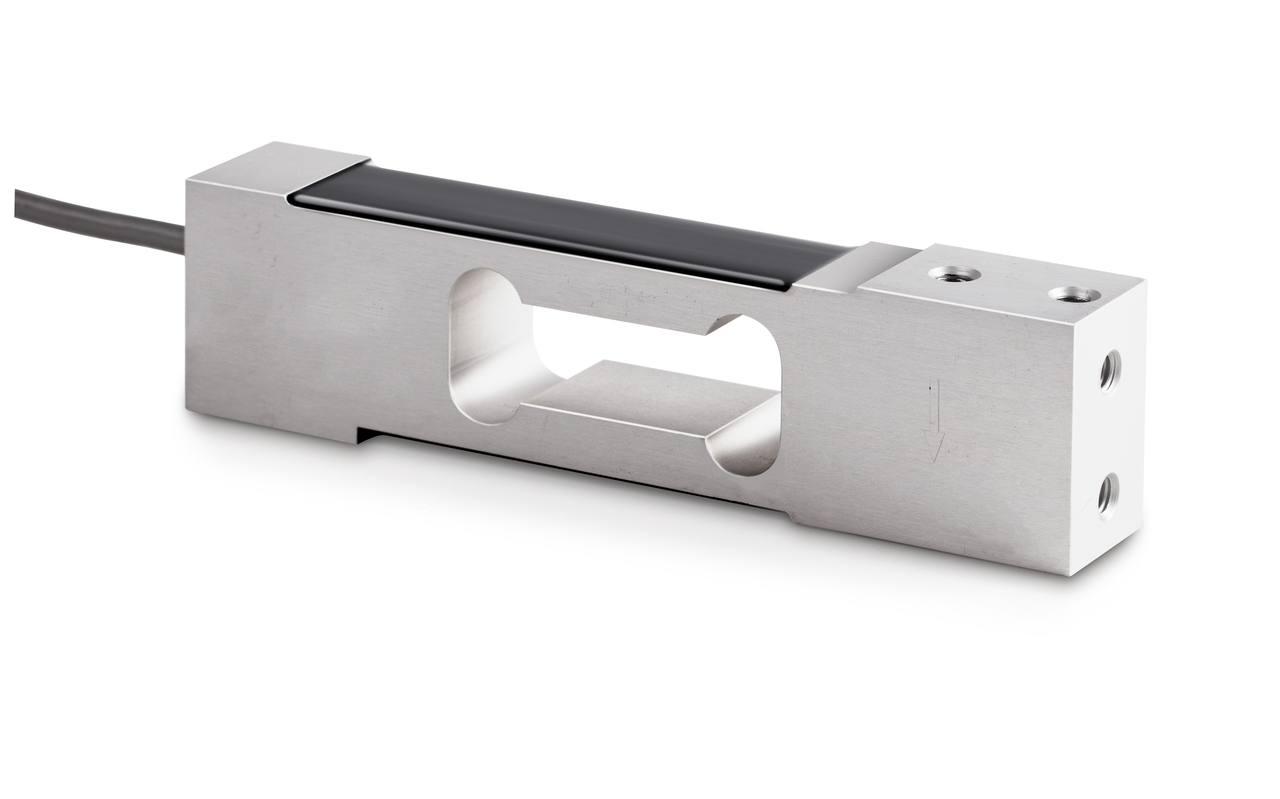

CP 75-3P3
CP 75-3P3
CP 75-3P3
See specifications
Special Price £74.52 £62.10 £82.80 £69.00
75 kg Nominal Value
3 m Cable length
350×400 mm Max weighing plate size
Push
C3
15 g
3000 e
6-wire
2 mV/V
Yes (IP65)
0,40 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £74.52 £62.10 £82.80 £69.00
CP 100-3P3
CP 100-3P3
CP 100-3P3
See specifications
Special Price £74.52 £62.10 £82.80 £69.00
100 kg Nominal Value
3 m Cable length
350×400 mm Max weighing plate size
Push
C3
20 g
3000 e
6-wire
2 mV/V
Yes (IP65)
0,40 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £74.52 £62.10 £82.80 £69.00
pencil-alt

Description

Sauter CP P3 – single-point load cell with 4-wire connection, suitable for platform sizes up to 35 × 40 cm. It can be used for many applications, such as price computing scales, bench scales, and other precision applications. The load cell has a 3 m cable and a nominal sensitivity of 2 mV/V.

OIML Accuracy Class:
OIML R60 C3 (combined error < 0.02%)

Material:
Anodized aluminum

IP Protection:
IP65

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-cp-p3
Type loadcells
document

Documents

truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

OIML classification C3
Minimum recommended readability 6 g
Max weighing plate size 350×400 mm
Push / Pull Push
Temperature -35 °C / 65 °C
Cable length 3 m
nominal sensitivity 2 mV/V
4/6 wires 6-wire
Waterproof / dustproof (IP) Yes (IP65)
CE certification Yes
Weight 0,40 kg
