Description

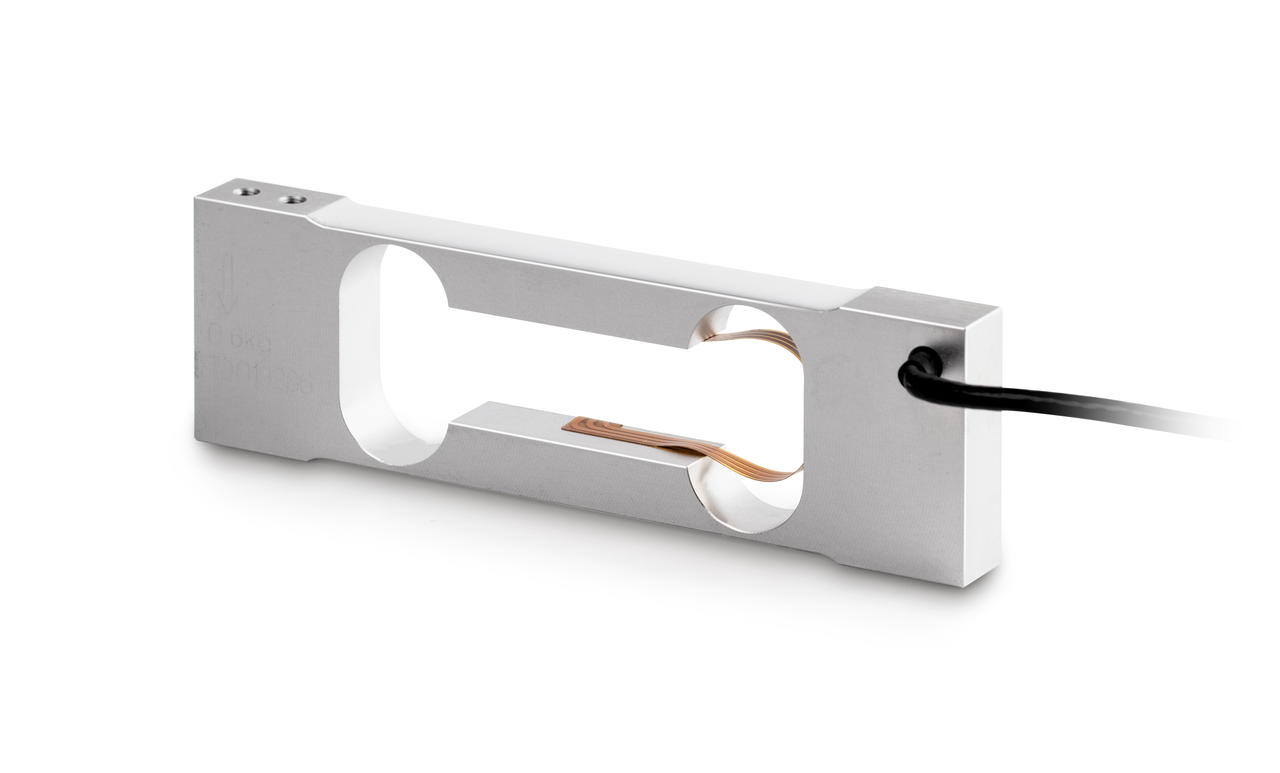

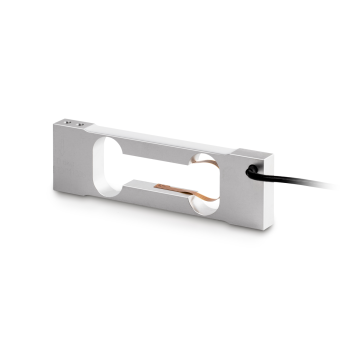

Sauter CP P4 and CP Y4 – compact single-point load cells, suitable for a maximum platform size of 20 × 20 cm. With a 40 cm cable and 4-wire connection, the load cell is easy to install and integrate into many types of applications – for example, price computing scales, bench scales, and other compact weighing systems. The nominal sensitivity is 0.9 mV/V.
OIML Accuracy Class:
P4 models: OIML R60 C3 (combined error < 0.02%)
Y4 models: OIML R60 C2 (combined error < 0.03%)
Material:
Anodized aluminum
IP Protection:
IP65
Technical Specifications
| OIML classification | C3 |
| Minimum recommended readability | 0.06 g |
| Max weighing plate size | 200×200 mm |
| Push / Pull | Push |
| Temperature | -20 °C / 50 °C |
| Cable length | 0.4 m |
| nominal sensitivity | 0.9 mV/V |
| 4/6 wires | 4-wire |
| Waterproof / dustproof (IP) | Yes (IP65) |
| CE certification | Yes |
| Weight | 0,10 kg |
