Load Cell Sauter - Stainless Steel - CT P1

£98.00 - £178.00
Choose model
Standard
Verification IP67 - IND
Options
Certificate_DAkkS Certificate_factory
Short Description
The Sauter CT P1/P2 is a stainless steel load cell designed for measuring mass and force in harsh environments. The cell is hermetically sealed and offers dust and water protection up to IP67 (in accordance with EN 60529), making it ideal for demanding industrial applications. It is particularly sui .... Read the full description
CT 500-3P1
CT 500-3P1
CT 500-3P1
See specifications
Special Price £105.84 £88.20 £117.60 £98.00
500 kg Nominal Value
4 m Cable length
Push Push / Pull
C3
100 g
3000 e
4-wire
3 mV/V
500 kg
kg
Yes (IP67)
Yes
0,95 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £105.84 £88.20 £117.60 £98.00

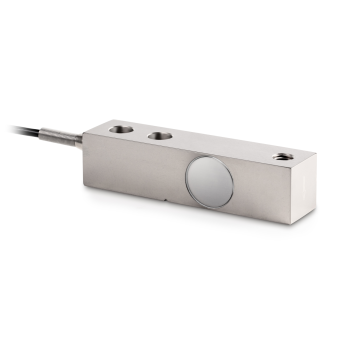

CT 1000-3P1
CT 1000-3P1
CT 1000-3P1
See specifications
Special Price £105.84 £88.20 £117.60 £98.00
1000 kg Nominal Value
4 m Cable length
Push Push / Pull
C3
200 g
3000 e
4-wire
3 mV/V
1000 kg
kg
Yes (IP67)
Yes
0,95 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £105.84 £88.20 £117.60 £98.00
CT 1500-3P1
CT 1500-3P1
CT 1500-3P1
See specifications
Special Price £105.84 £88.20 £117.60 £98.00
1500 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
300 g
3000 e
4-wire
3 mV/V
1500 kg
kg
Yes (IP67)
Yes
1,2 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £105.84 £88.20 £117.60 £98.00
CT 2500-3P1
CT 2500-3P1
CT 2500-3P1
See specifications
Special Price £128.52 £107.10 £142.80 £119.00
2500 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
500 g
3000 e
4-wire
3 mV/V
Yes (IP67)
1,8 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £128.52 £107.10 £142.80 £119.00
CT 3000-3P1
CT 3000-3P1
CT 3000-3P1
See specifications
Special Price £128.52 £107.10 £142.80 £119.00
3000 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
600 g
3000 e
4-wire
3 mV/V
3000 kg
kg
Yes (IP67)
Yes
1,8 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £128.52 £107.10 £142.80 £119.00
CT 5000-3P1
CT 5000-3P1
CT 5000-3P1
See specifications
Special Price £128.52 £107.10 £142.80 £119.00
5000 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
1 kg
3000 e
4-wire
3 mV/V
Yes (IP67)
1,8 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £128.52 £107.10 £142.80 £119.00
CT 10000-3P1
CT 10000-3P1
CT 10000-3P1
See specifications
Special Price £171.72 £143.10 £190.80 £159.00
10000 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
2 kg
3000 e
4-wire
3 mV/V
Yes (IP67)
3,8 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £171.72 £143.10 £190.80 £159.00
CT 500-3P2
CT 500-3P2
CT 500-3P2
See specifications
Special Price £111.24 £92.70 £123.60 £103.00
500 kg Nominal Value
4 m Cable length
Push Push / Pull
C3
100 g
3000 e
4-wire
3 mV/V
500 kg
kg
Yes (IP67)
Yes
0,95 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £111.24 £92.70 £123.60 £103.00
CT 1000-3P2
CT 1000-3P2
CT 1000-3P2
See specifications
Special Price £111.24 £92.70 £123.60 £103.00
1000 kg Nominal Value
4 m Cable length
Push Push / Pull
C3
200 g
3000 e
4-wire
3 mV/V
1000 kg
kg
Yes (IP67)
Yes
0,95 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £111.24 £92.70 £123.60 £103.00

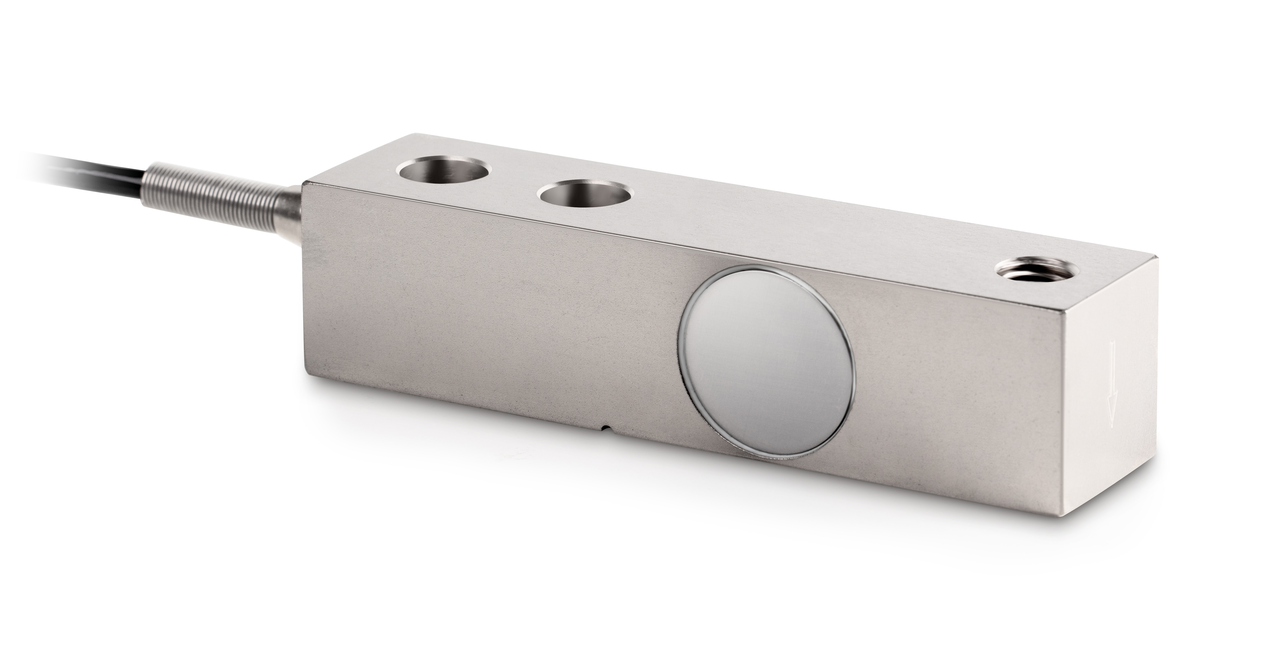

CT 3000-3P2
CT 3000-3P2
CT 3000-3P2
See specifications
Special Price £135.00 £112.50 £150.00 £125.00
3000 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
600 g
3000 e
4-wire
3 mV/V
3000 kg
kg
Yes (IP67)
Yes
0,95 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £135.00 £112.50 £150.00 £125.00
CT 5000-3P2
CT 5000-3P2
CT 5000-3P2
See specifications
Special Price £133.92 £111.60 £148.80 £124.00
5000 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
1 kg
3000 e
4-wire
3 mV/V
5000 kg
kg
Yes (IP67)
Yes
0,95 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £133.92 £111.60 £148.80 £124.00
CT 10000-3P2
CT 10000-3P2
CT 10000-3P2
See specifications
Special Price £192.24 £160.20 £213.60 £178.00
10000 kg Nominal Value
6 m Cable length
Push Push / Pull
C3
2 kg
3000 e
4-wire
3 mV/V
10000 kg
kg
Yes (IP67)
Yes
3,8 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £192.24 £160.20 £213.60 £178.00
pencil-alt

Description

The Sauter CT P1/P2 is a stainless steel load cell designed for measuring mass and force in harsh environments. The cell is hermetically sealed and offers dust and water protection up to IP67 (in accordance with EN 60529), making it ideal for demanding industrial applications. It is particularly suitable for platform scales, weighing hoppers, floor-mounted scales and other precision applications. Supplied with a 4- or 6-metre cable and 4-wire connection, as well as a nominal sensitivity of 3 mV/V.

The CT-P2 versions are supplied with calibrated sensitivity when multiple load cells are ordered together.

OIML accuracy class:
OIML R60 C3 (combined error < 0.02%)

Material:
Stainless steel

IP protection:
IP67

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-ct-p1-p2
Type loadcells
document

Documents

truck

Delivery

Estimated delivery time 2-4 business days
cog

Technical Specifications

OIML classification C3
Nominal Value 500 kg
Measuring unit kg
Push / Pull Push
Temperature -35 °C / 65 °C
Cable length 4 m
nominal sensitivity 3 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP67)
CE certification Yes
