Description

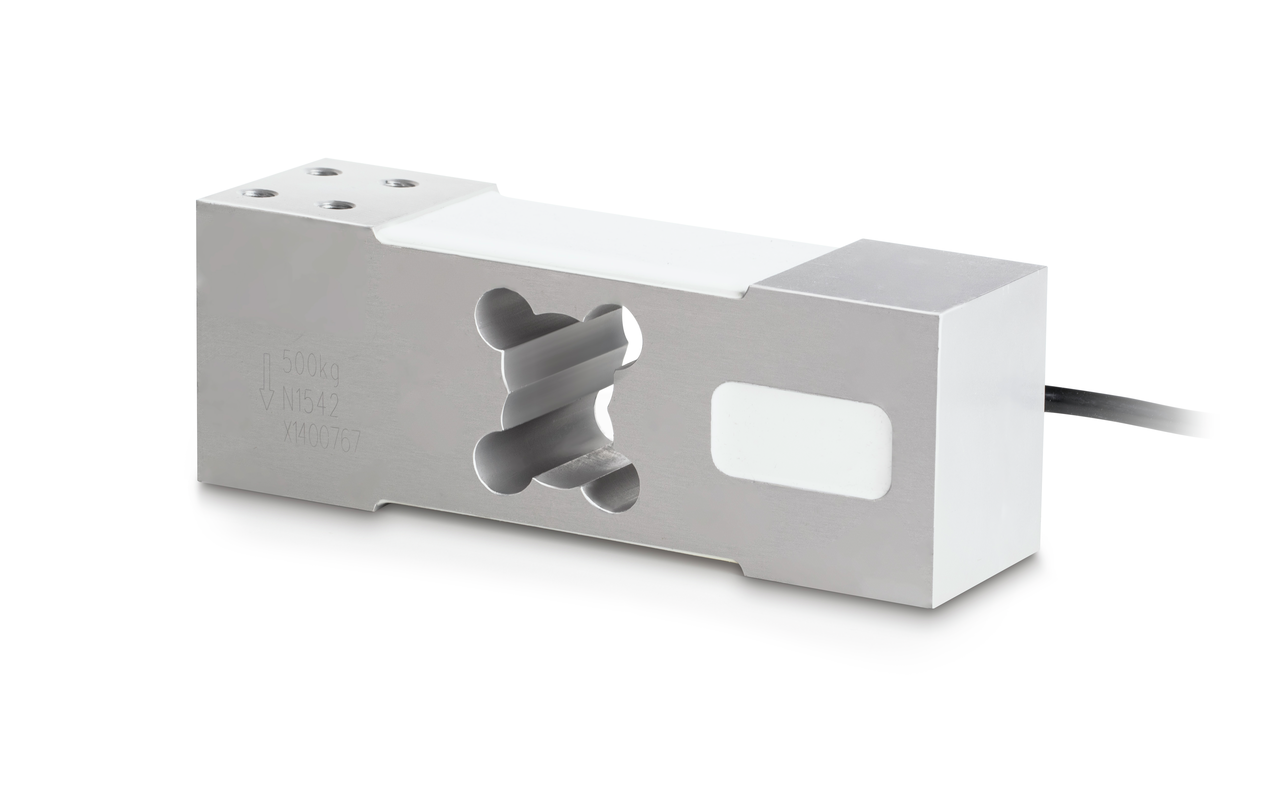

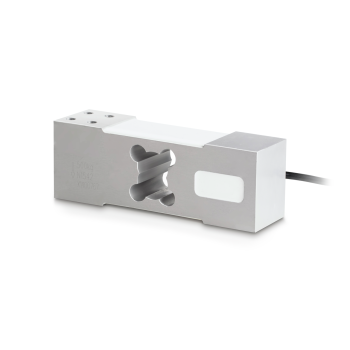

Sauter CP P8 – single-point load cell with 6-wire connection, suitable for platforms up to 60 × 60 cm. It can be used for many applications, such as price computing scales, platform scales, and other precision applications. The load cell has a 3 m cable and a nominal sensitivity of 2 mV/V. The 6-wire connection ensures more accurate weighing, even under conditions with temperature fluctuations, vibrations, or longer cables.
OIML Accuracy Class:
OIML R60 C3 (combined error < 0.02%)
Material:
Aluminum
IP Protection:
IP65
Technical Specifications
| OIML classification | C3 |
| Minimum recommended readability | 10 g |
| Max weighing plate size | 600×600 mm |
| Push / Pull | Push |
| Temperature | -35 °C / 65 °C |
| Cable length | 3 m |
| nominal sensitivity | 2 mV/V |
| 4/6 wires | 6-wire |
| Waterproof / dustproof (IP) | Yes (IP65) |
| CE certification | Yes |
| Weight | 1,8 kg |
