Load Cell Sauter - Anodized aluminium - CP-P1

£59.00 - £69.00

Choose model

Standard

Options

Short Description

Sauter CP P1 is a single point load cell with a 4-wire connection, suitable for platform sizes up to 25 × 35 cm. It can be used for a variety of applications, such as price-computing scales, bench scales, and other precision applications. Cable length varies between models. The cell has a nominal s .... Read the full description

Free delivery

Get technical data Get manual Product questions

Model

Nominal Value

Cable length

Max weighing plate size

Push / Pull

OIML classification

Minimum recommended readability

Maximum divisions (e)

4/6 wires

nominal sensitivity

Measuring unit

Waterproof / dustproof (IP)

Stainless Steel

Manual

Weight

Temperature

Calibration certificate available?

Datasheet

Calibration Certificate / Verification

Price

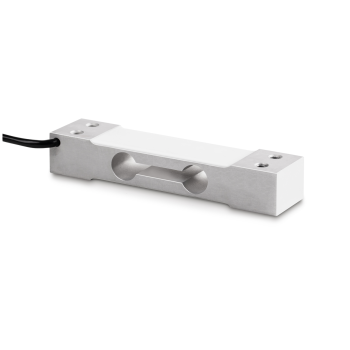

CP 3-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

3 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

0.6 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 3-2-3P1

See specifications

Special Price £74.52 £62.10 £82.80 £69.00

3 kg Nominal Value

2 m Cable length

250×350 mm Max weighing plate size

Push

0.6 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,25 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £74.52 £62.10 £82.80 £69.00

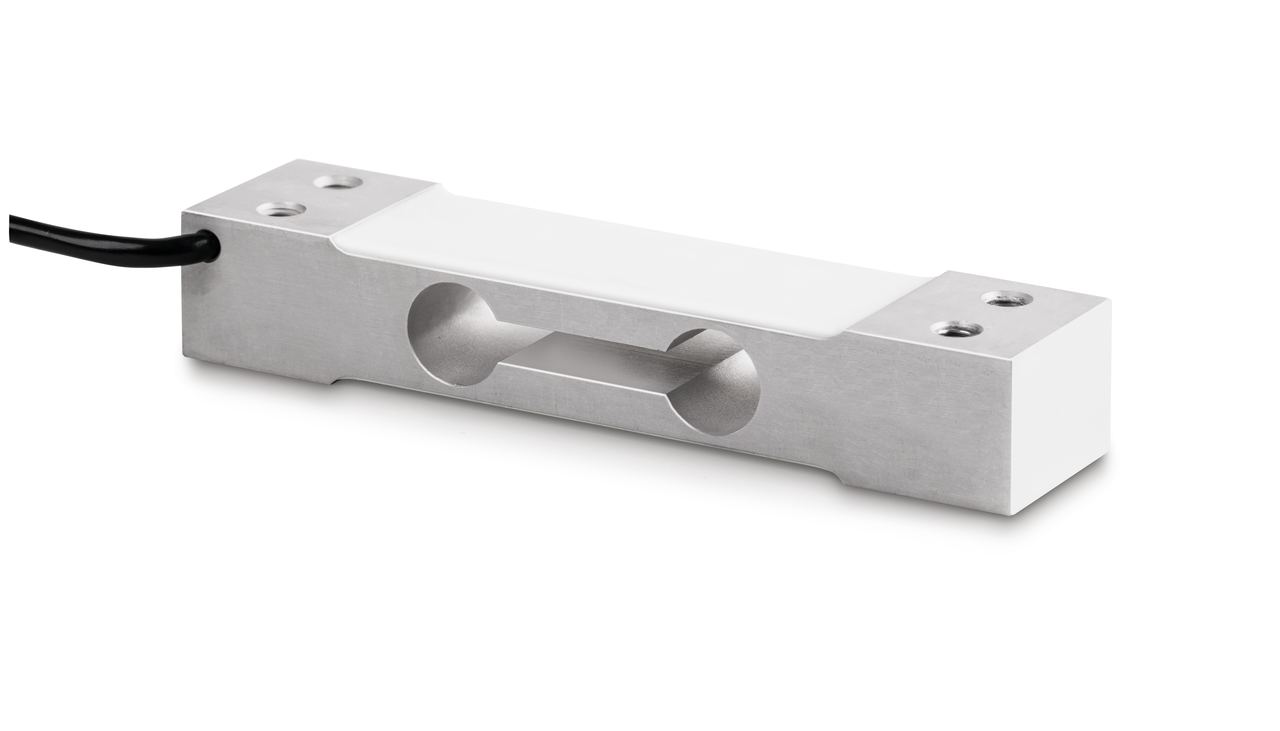

CP 5-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

5 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

1 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 6-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

6 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

1.2 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 8-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

8 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

1.6 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 10-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

10 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

2 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 10-3-3P1

See specifications

Special Price £74.52 £62.10 £82.80 £69.00

10 kg Nominal Value

3 m Cable length

250×350 mm Max weighing plate size

Push

2 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,25 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £74.52 £62.10 £82.80 £69.00

CP 15-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

15 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

3 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 15-3-3P1

See specifications

Special Price £74.52 £62.10 £82.80 £69.00

15 kg Nominal Value

3 m Cable length

250×350 mm Max weighing plate size

Push

3 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,25 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £74.52 £62.10 £82.80 £69.00

CP 20-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

20 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

4 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 30-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

30 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

6 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 35-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

35 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

7 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 35-3P1

See specifications

Special Price £74.52 £62.10 £82.80 £69.00

35 kg Nominal Value

3 m Cable length

250×350 mm Max weighing plate size

Push

7 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,25 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £74.52 £62.10 £82.80 £69.00

CP 40-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

40 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

8 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 50-3P1

See specifications

Special Price £63.72 £53.10 £70.80 £59.00

50 kg Nominal Value

0.4 m Cable length

250×350 mm Max weighing plate size

Push

10 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,20 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £63.72 £53.10 £70.80 £59.00

CP 50-2-3P1

See specifications

Special Price £74.52 £62.10 £82.80 £69.00

50 kg Nominal Value

2 m Cable length

250×350 mm Max weighing plate size

Push

10 g

3000 e

4-wire

2 mV/V

Yes (IP65)

0,25 kg

-35 °C / 65 °C

Calibration Certificate / Verification

Special Price £74.52 £62.10 £82.80 £69.00

Description

Sauter CP P1 is a single point load cell with a 4-wire connection, suitable for platform sizes up to 25 × 35 cm. It can be used for a variety of applications, such as price-computing scales, bench scales, and other precision applications. Cable length varies between models. The cell has a nominal sensitivity of 2 mV/V.

OIML accuracy class:
P4 models: OIML R60 C3 (combined error < 0.02 %)

Material:
Anodized aluminum

IP protection:
IP65

Notice:

All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.

General

Manufacturer	Sauter
SKU	sauter-cp-p1
Type	loadcells

Documents

Manual	English	German
Datasheet	English	German French
Declaration of conformity - CE	English	German French Dutch Swedish Danish Finnish

Technical Specifications

OIML classification	C3
Push / Pull	Push
Temperature	-35 °C / 65 °C
Cable length	0.4 m
nominal sensitivity	2 mV/V
4/6 wires	4-wire
Waterproof / dustproof (IP)	Yes (IP65)
CE certification	Yes
Weight	0,20 kg
