Load Cell Sauter - Alloy Steel - CR-Y1

£229.00 - £369.00
Choose model
Standard
IP68 - IND IP68 - LC
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CR Y1 – load cell made of alloy steel, hermetically sealed, and water- and dust-resistant with IP68 protection (according to EN 60529).It is suitable for measuring mass as well as tensile and compressive forces in tough environments, e.g., on platform scales, silo scales, medical scales, an .... Read the full description

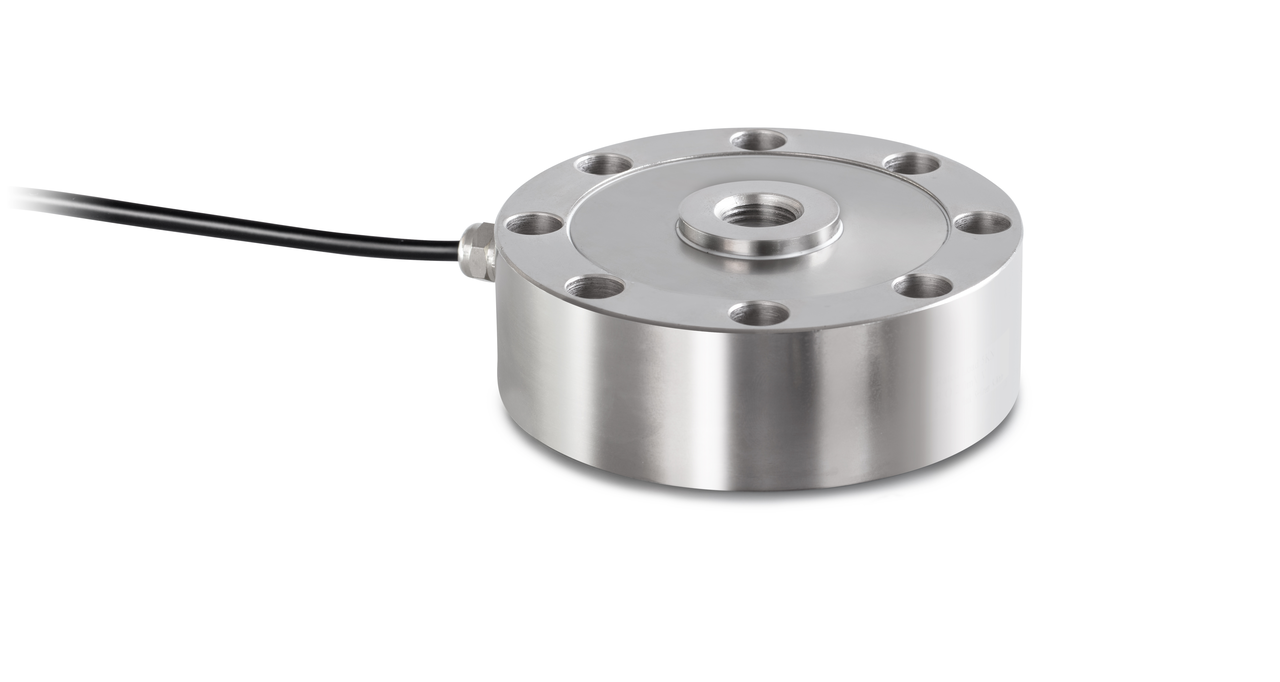

CR 500-1Y1
CR 500-1Y1
CR 500-1Y1
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
500 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C1
250 g
4-wire
2 mV/V
Yes (IP68)
1,8 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00

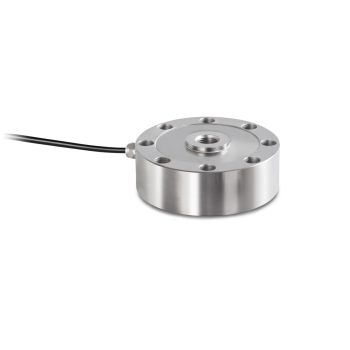

CR 1000-1Y1
CR 1000-1Y1
CR 1000-1Y1
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
1000 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C1
500 g
4-wire
2 mV/V
Yes (IP68)
1,8 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
CR 5000-1Y1
CR 5000-1Y1
CR 5000-1Y1
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
5000 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C1
2.5 kg
4-wire
2 mV/V
Yes (IP68)
1,8 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
CR 10000-1Y1
CR 10000-1Y1
CR 10000-1Y1
See specifications
Special Price £398.52 £332.10 £442.80 £369.00
10000 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C1
5 kg
4-wire
2 mV/V
Yes (IP68)
4,0 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £398.52 £332.10 £442.80 £369.00
CR 20000-1Y1
CR 20000-1Y1
CR 20000-1Y1
See specifications
Special Price £398.52 £332.10 £442.80 £369.00
20000 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C1
10 kg
4-wire
2 mV/V
Yes (IP68)
1,8 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £398.52 £332.10 £442.80 £369.00
pencil-alt

Description

Sauter CR Y1 – load cell made of alloy steel, hermetically sealed, and water- and dust-resistant with IP68 protection (according to EN 60529).
It is suitable for measuring mass as well as tensile and compressive forces in tough environments, e.g., on platform scales, silo scales, medical scales, and other industrial applications. Force transmission is done via a pressure piece or threaded hole. The load cell has a nominal sensitivity of 2 mV/V and comes with a 10-meter cable with 4-wire connection, ensuring quick and easy installation.

OIML Accuracy Class:
OIML R60 C1 (combined error < 0.05%)

Material:
Alloy steel

IP Protection:
IP68

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-cr-y1
Type loadcells
document

Documents

truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

OIML classification C1
Minimum recommended readability 250 g
Push / Pull Push / Pull
Cable length 3 m
nominal sensitivity 2 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP68)
CE certification Yes
Weight 1,8 kg
