Load Cell Sauter - Alloy Steel - DC-Y2

£419.00 - £419.00
Choose model
Standard
IP65 - IND IP65 - LC
Short Description
Static Torque Sensor Sauter DC Y2 with IP65 protection is suitable for monitoring and measuring static torque forces, testing manual torque wrenches, and transferring static load torques. The sensor comes with a 2-meter cable and 4-wire connection, ensuring quick and easy installation. The maximum s .... Read the full description

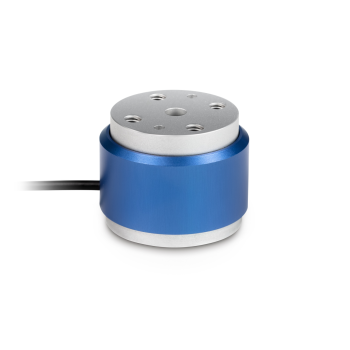

DC 200M-Y2
DC 200M-Y2
DC 200M-Y2
See specifications
Special Price £452.52 £377.10 £502.80 £419.00
0,2 Nm Nominal Value
2 m Cable length
moment of force Push / Pull
0.001 Nm
4-wire
1.5 mV/V
Yes (IP65)
0,35 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £452.52 £377.10 £502.80 £419.00
DC 1-Y2
DC 1-Y2
DC 1-Y2
See specifications
Special Price £452.52 £377.10 £502.80 £419.00
1 Nm Nominal Value
2 m Cable length
moment of force Push / Pull
0.005 Nm
4-wire
1.5 mV/V
Yes (IP65)
0,35 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £452.52 £377.10 £502.80 £419.00

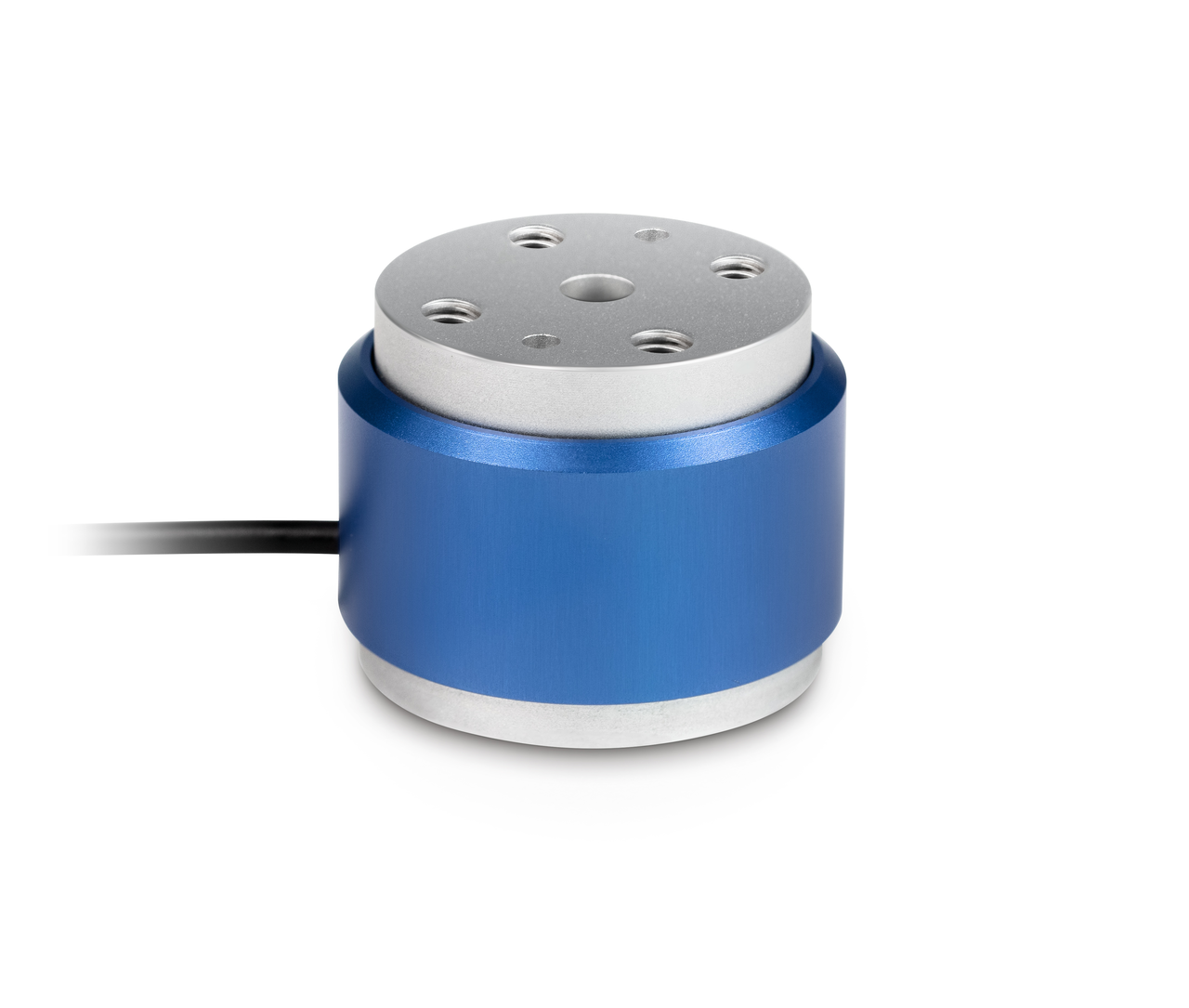

DC 10-Y2
DC 10-Y2
DC 10-Y2
See specifications
Special Price £452.52 £377.10 £502.80 £419.00
10 Nm Nominal Value
2 m Cable length
moment of force Push / Pull
0.05 Nm
4-wire
1.5 mV/V
Yes (IP65)
0,35 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £452.52 £377.10 £502.80 £419.00
DC 20-Y2
DC 20-Y2
DC 20-Y2
See specifications
Special Price £452.52 £377.10 £502.80 £419.00
20 Nm Nominal Value
2 m Cable length
moment of force Push / Pull
0.1 Nm
4-wire
1.5 mV/V
Yes (IP65)
0,35 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £452.52 £377.10 £502.80 £419.00
DC 50-Y2
DC 50-Y2
DC 50-Y2
See specifications
Special Price £452.52 £377.10 £502.80 £419.00
50 Nm Nominal Value
2 m Cable length
moment of force Push / Pull
0.25 Nm
4-wire
1.5 mV/V
Yes (IP65)
0,35 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £452.52 £377.10 £502.80 £419.00
pencil-alt

Description

Static Torque Sensor Sauter DC Y2 with IP65 protection is suitable for monitoring and measuring static torque forces, testing manual torque wrenches, and transferring static load torques. The sensor comes with a 2-meter cable and 4-wire connection, ensuring quick and easy installation. The maximum supply voltage is 10 V, and the nominal sensitivity is between 1.0 – 1.5 mV/V.

OIML Accuracy Class:
OIML R60 G5 (combined error < 0.5%)

Material:
Alloy steel

IP Protection:
IP-65

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-dc-y2
Type loadcells
truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

Minimum recommended readability 0.001 Nm
Push / Pull moment of force
Cable length 2 m
nominal sensitivity 1.5 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP65)
CE certification Yes
Weight 0,35 kg
