Load Cell Sauter - Stainless Steel - CO-Y1

£149.00 - £299.00
Choose model
Standard
IP65 - IND IP65 - LC
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CO Y1-Y2 – miniature, cylindrical load cell in stainless steel. Designed to measure both tensile and compressive forces as well as mass. The load cell comes with a 2-meter cable with 4-wire connection and a nominal sensitivity of 1–2 mV/V, depending on capacity. CO-Y1: For compressive fo .... Read the full description
CO 10-Y1
CO 10-Y1
CO 10-Y1
See specifications
Special Price £160.92 £134.10 £178.80 £149.00
10 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
50 g
4-wire
1.5 mV/V
Yes (IP65)
0,05 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £160.92 £134.10 £178.80 £149.00

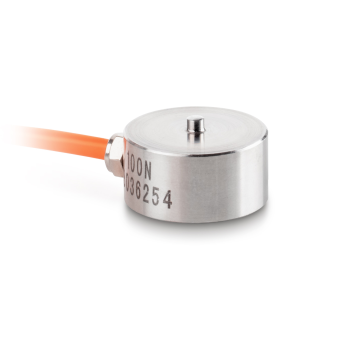

CO 20-Y1
CO 20-Y1
CO 20-Y1
See specifications
Special Price £160.92 £134.10 £178.80 £149.00
20 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
100 g
4-wire
1.5 mV/V
Yes (IP65)
0,05 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £160.92 £134.10 £178.80 £149.00
CO 50-Y1
CO 50-Y1
CO 50-Y1
See specifications
Special Price £160.92 £134.10 £178.80 £149.00
50 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
250 g
4-wire
1.5 mV/V
Yes (IP65)
0,05 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £160.92 £134.10 £178.80 £149.00
CO 100-Y1
CO 100-Y1
CO 100-Y1
See specifications
Special Price £160.92 £134.10 £178.80 £149.00
100 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
500 g
4-wire
1.5 mV/V
Yes (IP65)
0,05 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £160.92 £134.10 £178.80 £149.00
CO 200-Y1
CO 200-Y1
CO 200-Y1
See specifications
Special Price £160.92 £134.10 £178.80 £149.00
200 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
1 kg
4-wire
1.5 mV/V
Yes (IP65)
0,05 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £160.92 £134.10 £178.80 £149.00
CO 500-Y1
CO 500-Y1
CO 500-Y1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
500 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
2.5 kg
4-wire
1.5 mV/V
Yes (IP65)
0,10 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00

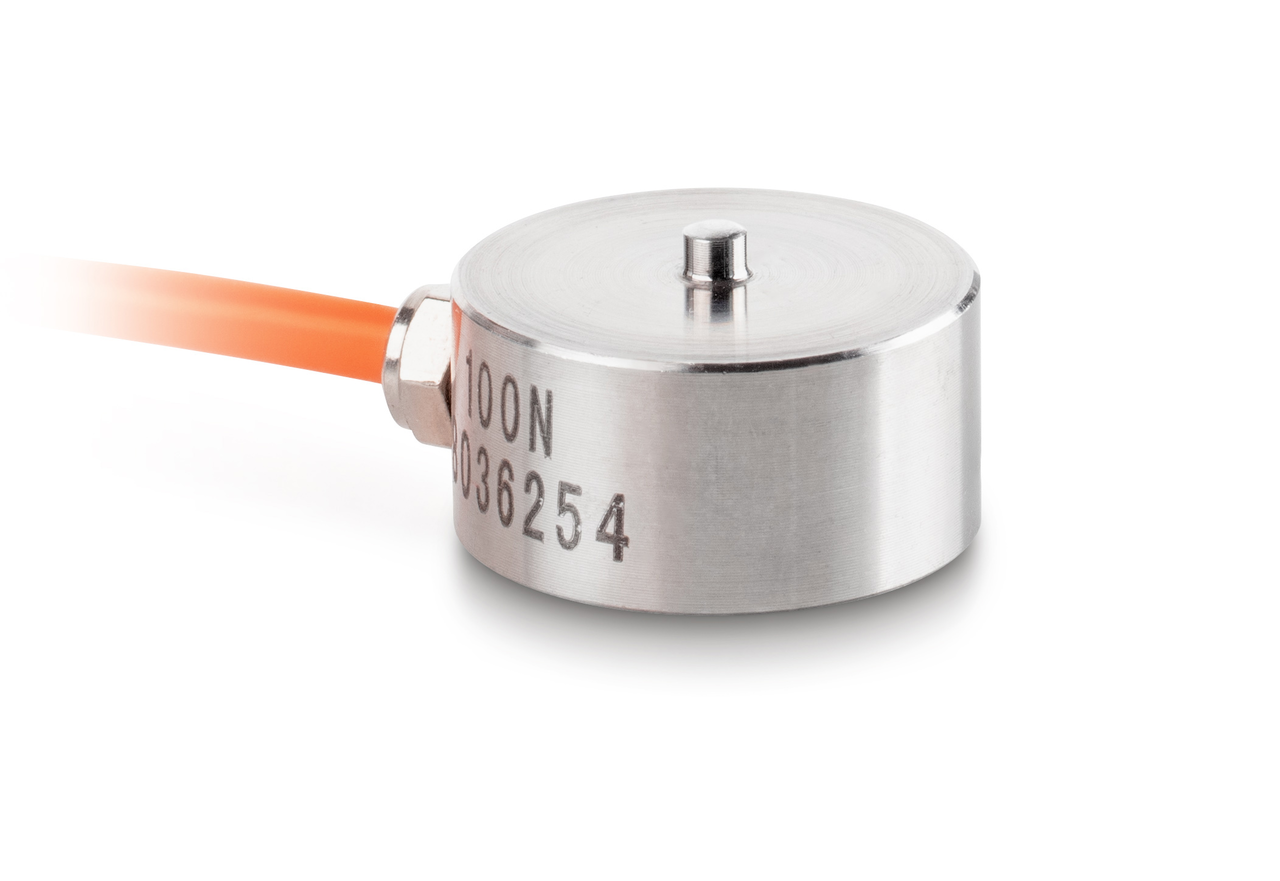

CO 1000-Y1
CO 1000-Y1
CO 1000-Y1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
1000 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
5 kg
4-wire
1.5 mV/V
Yes (IP65)
0,10 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CO 2000-Y1
CO 2000-Y1
CO 2000-Y1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
2000 kg Nominal Value
2 m Cable length
Push Push / Pull
G5
10 kg
4-wire
1.5 mV/V
Yes (IP65)
0,10 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CO 10-Y2
CO 10-Y2
CO 10-Y2
See specifications
Special Price £236.52 £197.10 £262.80 £219.00
10 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G5
50 g
4-wire
2 mV/V
Yes (IP65)
0,10 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £236.52 £197.10 £262.80 £219.00
CO 20-Y2
CO 20-Y2
CO 20-Y2
See specifications
Special Price £236.52 £197.10 £262.80 £219.00
20 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G5
100 g
4-wire
2 mV/V
Yes (IP65)
0,10 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £236.52 £197.10 £262.80 £219.00
CO 50-Y2
CO 50-Y2
CO 50-Y2
See specifications
Special Price £236.52 £197.10 £262.80 £219.00
50 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G5
250 g
4-wire
2 mV/V
Yes (IP65)
0,10 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £236.52 £197.10 £262.80 £219.00
CO 200-Y2
CO 200-Y2
CO 200-Y2
See specifications
Special Price £290.52 £242.10 £322.80 £269.00
100 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G5
500 g
4-wire
2 mV/V
Yes (IP65)
0,50 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £290.52 £242.10 £322.80 £269.00

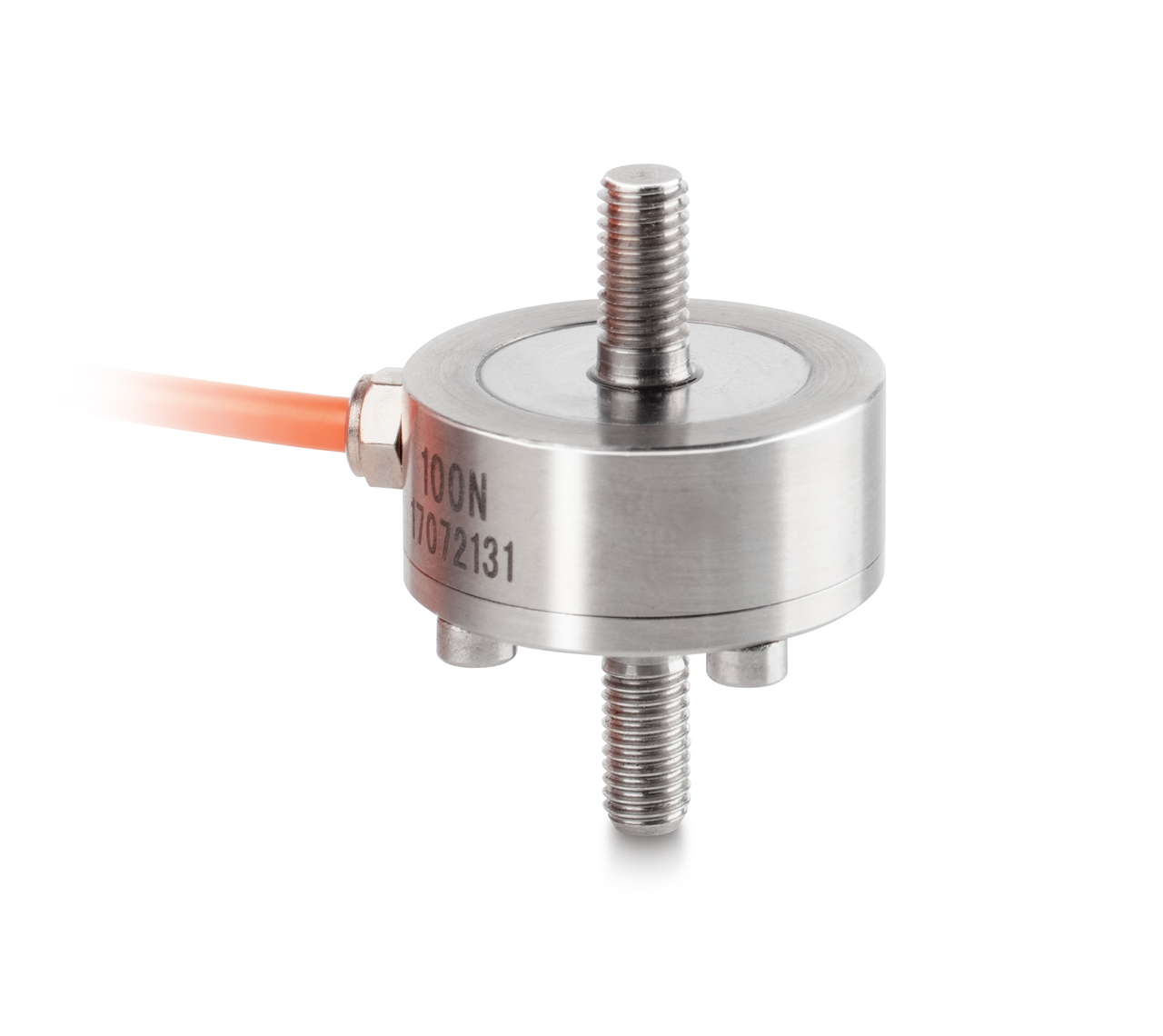

CO 200-Y2
CO 200-Y2
CO 200-Y2
See specifications
Special Price £290.52 £242.10 £322.80 £269.00
200 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G5
1 kg
4-wire
2 mV/V
Yes (IP65)
0,50 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £290.52 £242.10 £322.80 £269.00
CO 500-Y2
CO 500-Y2
CO 500-Y2
See specifications
Special Price £290.52 £242.10 £322.80 £269.00
500 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G5
2.5 kg
4-wire
2 mV/V
Yes (IP65)
0,50 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £290.52 £242.10 £322.80 £269.00
CO 2000-Y2
CO 2000-Y2
CO 2000-Y2
See specifications
Special Price £322.92 £269.10 £358.80 £299.00
2000 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G5
10 kg
4-wire
2 mV/V
Yes (IP65)
0,55 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £322.92 £269.10 £358.80 £299.00
pencil-alt

Description

Sauter CO Y1-Y2 – miniature, cylindrical load cell in stainless steel. Designed to measure both tensile and compressive forces as well as mass. The load cell comes with a 2-meter cable with 4-wire connection and a nominal sensitivity of 1–2 mV/V, depending on capacity.

CO-Y1: For compressive force measurement only
CO-Y2: For both tensile and compressive force measurement

OIML Accuracy Class:
OIML R60 G5 (combined error < 0.5%)

Material:
Stainless steel

IP Protection:
IP65

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-co-y1-y2
Type loadcells
document

Documents

truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

OIML classification G5
Minimum recommended readability 50 g
Push / Pull Push
Cable length 2 m
nominal sensitivity 1.5 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP65)
CE certification Yes
Weight 0,05 kg
