Load Cell Sauter - Stainless Steel - CP-P7

£229.00 - £229.00
Choose model
Standard
IP67 - IND IP67 - LC Stainless Steel
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CP P7 – single-point load cell made of stainless steel with 6-wire connection, suitable for platforms up to 40 × 40 cm. It can be used for many applications, such as price computing scales, bench scales, and other precision applications. The load cell has a 1 m cable and a nominal sensitiv .... Read the full description

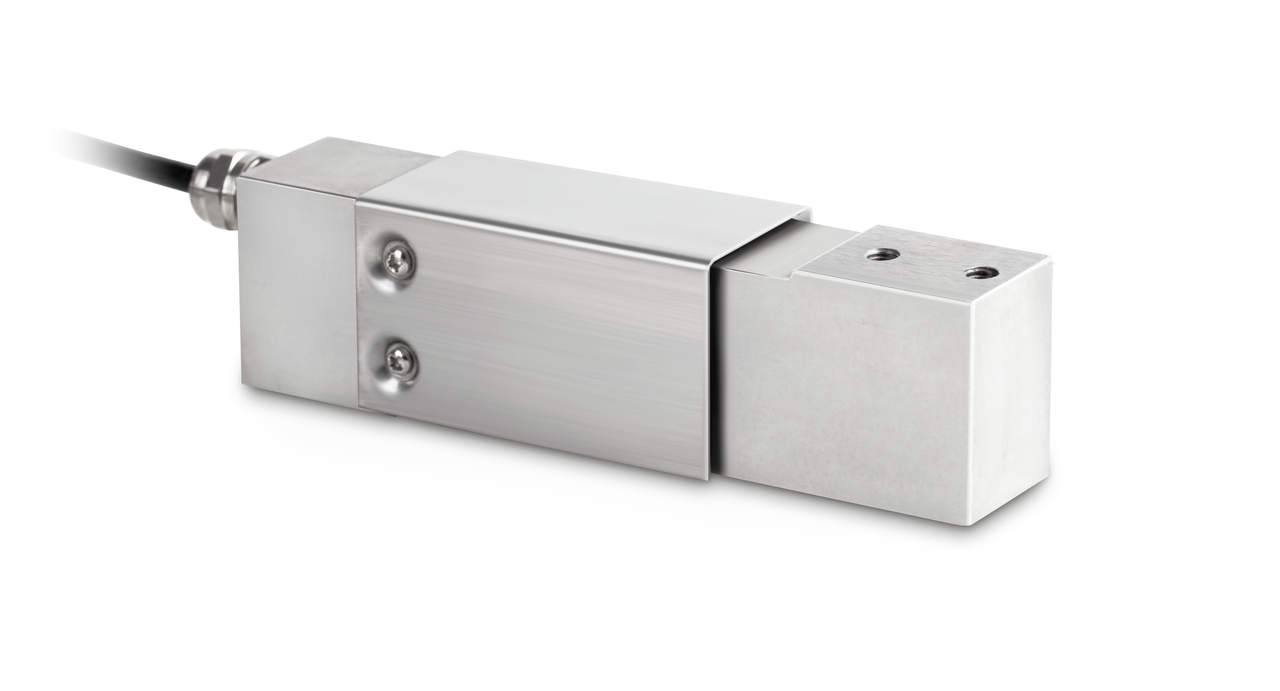

CP 30-3P7
CP 30-3P7
CP 30-3P7
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
30 kg Nominal Value
1 m Cable length
400×400 mm Max weighing plate size
Push
C3
6 g
3000 e
6-wire
2 mV/V
Yes (IP67)
1,00 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00

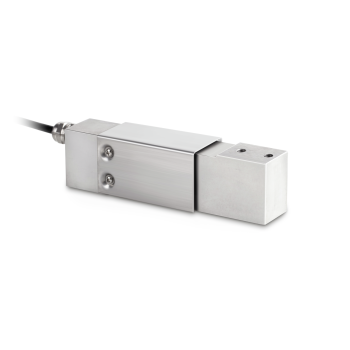

CP 50-3P7
CP 50-3P7
CP 50-3P7
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
50 kg Nominal Value
1 m Cable length
400×400 mm Max weighing plate size
Push
C3
10 g
3000 e
6-wire
2 mV/V
Yes (IP67)
1,00 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
CP 75-3P7
CP 75-3P7
CP 75-3P7
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
75 kg Nominal Value
1 m Cable length
400×400 mm Max weighing plate size
Push
C3
15 g
3000 e
6-wire
2 mV/V
Yes (IP67)
1,00 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
CP 100-3P7
CP 100-3P7
CP 100-3P7
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
100 kg Nominal Value
1 m Cable length
400×400 mm Max weighing plate size
Push
C3
20 g
3000 e
6-wire
2 mV/V
Yes (IP67)
1,00 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
CP 150-3P7
CP 150-3P7
CP 150-3P7
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
150 kg Nominal Value
1 m Cable length
400×400 mm Max weighing plate size
Push
C3
30 g
3000 e
6-wire
2 mV/V
Yes (IP67)
1,00 kg
-35 °C / 65 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
pencil-alt

Description

Sauter CP P7 – single-point load cell made of stainless steel with 6-wire connection, suitable for platforms up to 40 × 40 cm. It can be used for many applications, such as price computing scales, bench scales, and other precision applications. The load cell has a 1 m cable and a nominal sensitivity of 2 mV/V. The 6-wire connection ensures more accurate weighing, even under conditions with temperature fluctuations, vibrations, or longer cables.

OIML Accuracy Class:
OIML R60 C3 (combined error < 0.02%)

Material:
Stainless steel

IP Protection:
IP67

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-cp-p7
Type loadcells
document

Documents

truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

OIML classification C3
Minimum recommended readability 6 g
Max weighing plate size 400×400 mm
Push / Pull Push
Temperature -35 °C / 65 °C
Cable length 1 m
nominal sensitivity 2 mV/V
4/6 wires 6-wire
Waterproof / dustproof (IP) Yes (IP67)
CE certification Yes
Weight 1,00 kg
