Load Cell Sauter - Nickel-Plated Steel - CS-P1

£169.00 - £1,659.00
Choose model
Standard
IP67 - IND IP67 - LC
Options
Certificate_DAkkS Certificate_factory
Factory options
Certificate_factory
Short Description
Sauter CS P1 – S-type load cell in nickel-plated steel, designed for measuring both tensile and compressive forces as well as mass. It is suitable for use in hanging scales, weighing hoppers, force gauges and test benches where accuracy and robustness are required. Supplied with a 3 or 6 metre cab .... Read the full description
CS 25-3P1
CS 25-3P1
CS 25-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
25 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
5 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,40 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CS 50-3P1
CS 50-3P1
CS 50-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
50 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
10 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,60 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CS 100-3P1
CS 100-3P1
CS 100-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
100 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
20 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,60 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00

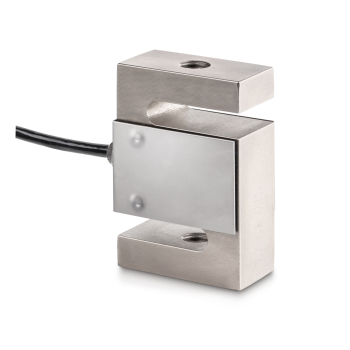

CS 150-3P1
CS 150-3P1
CS 150-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
150 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
30 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,55 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CS 250-3P1
CS 250-3P1
CS 250-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
250 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
50 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,55 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CS 500-3P1
CS 500-3P1
CS 500-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
500 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
100 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,55 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CS 600-3P1
CS 600-3P1
CS 600-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
600 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
120 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,55 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CS 750-3P1
CS 750-3P1
CS 750-3P1
See specifications
Special Price £182.52 £152.10 £202.80 £169.00
750 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
150 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,55 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £182.52 £152.10 £202.80 £169.00
CS 1000-3P1
CS 1000-3P1
CS 1000-3P1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
1000 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
200 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,70 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CS 1500-3P1
CS 1500-3P1
CS 1500-3P1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
1500 kg Nominal Value
3 m Cable length
Push / Pull Push / Pull
C3
300 g
3000 e
4-wire
2 mV/V
Yes (IP67)
0,70 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CS 2000-3P1
CS 2000-3P1
CS 2000-3P1
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
2000 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
400 g
3000 e
4-wire
2 mV/V
Yes (IP67)
1,4 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00

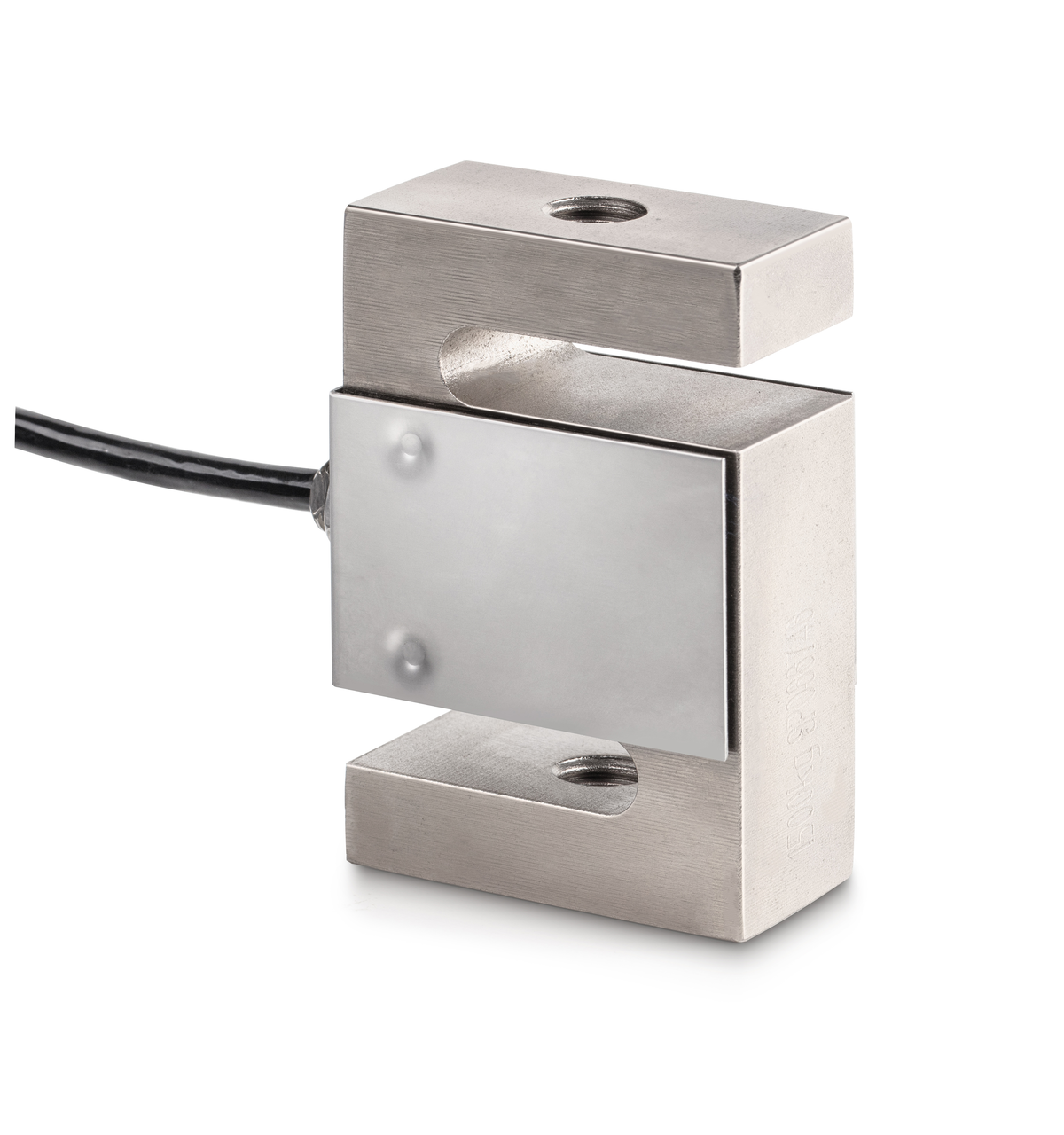

CS 2500-3P1
CS 2500-3P1
CS 2500-3P1
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
2500 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
500 g
3000 e
4-wire
2 mV/V
Yes (IP67)
1,4 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
CS 5000-3P1
CS 5000-3P1
CS 5000-3P1
See specifications
Special Price £247.32 £206.10 £274.80 £229.00
5000 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
1 kg
3000 e
4-wire
2 mV/V
Yes (IP67)
1,4 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £247.32 £206.10 £274.80 £229.00
CS 7500-3P1
CS 7500-3P1
CS 7500-3P1
See specifications
Special Price £495.72 £413.10 £550.80 £459.00
7500 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
1.5 kg
3000 e
4-wire
2 mV/V
Yes (IP67)
7 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £495.72 £413.10 £550.80 £459.00
CS 10000-3P1
CS 10000-3P1
CS 10000-3P1
See specifications
Special Price £495.72 £413.10 £550.80 £459.00
10000 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
2 kg
3000 e
4-wire
2 mV/V
Yes (IP67)
7 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £495.72 £413.10 £550.80 £459.00
CS 15000-3P1
CS 15000-3P1
CS 15000-3P1
See specifications
Special Price £636.12 £530.10 £706.80 £589.00
15000 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
3 kg
3000 e
4-wire
2 mV/V
Yes (IP67)
12 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £636.12 £530.10 £706.80 £589.00
CS 20000-3P1
CS 20000-3P1
CS 20000-3P1
See specifications
Special Price £700.92 £584.10 £778.80 £649.00
20000 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
4 kg
3000 e
4-wire
2 mV/V
Yes (IP67)
12 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £700.92 £584.10 £778.80 £649.00
CS 30000-3P1
CS 30000-3P1
CS 30000-3P1
See specifications
Special Price £1,791.72 £1,493.10 £1,990.80 £1,659.00
30000 kg Nominal Value
6 m Cable length
Push / Pull Push / Pull
C3
6 kg
3000 e
4-wire
2 mV/V
Yes (IP67)
12 kg
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £1,791.72 £1,493.10 £1,990.80 £1,659.00
pencil-alt

Description

Sauter CS P1 – S-type load cell in nickel-plated steel, designed for measuring both tensile and compressive forces as well as mass. It is suitable for use in hanging scales, weighing hoppers, force gauges and test benches where accuracy and robustness are required. Supplied with a 3 or 6 metre cable and 4-wire connection, as well as a nominal sensitivity of 2 mV/V.

OIML accuracy class:
OIML R60 C3 (combined error < 0.02%)

Material:
Nickel-plated steel

IP protection:
IP67

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-cs-p1
Type loadcells
document

Documents

truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

OIML classification C3
Minimum recommended readability 5 g
Push / Pull Push / Pull
Cable length 3 m
nominal sensitivity 2 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP67)
CE certification Yes
Weight 0,40 kg
