Description

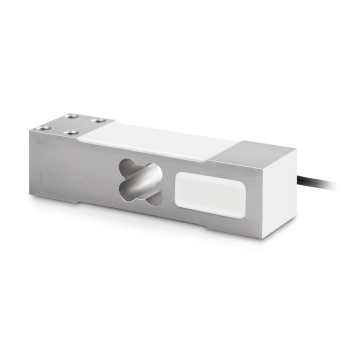

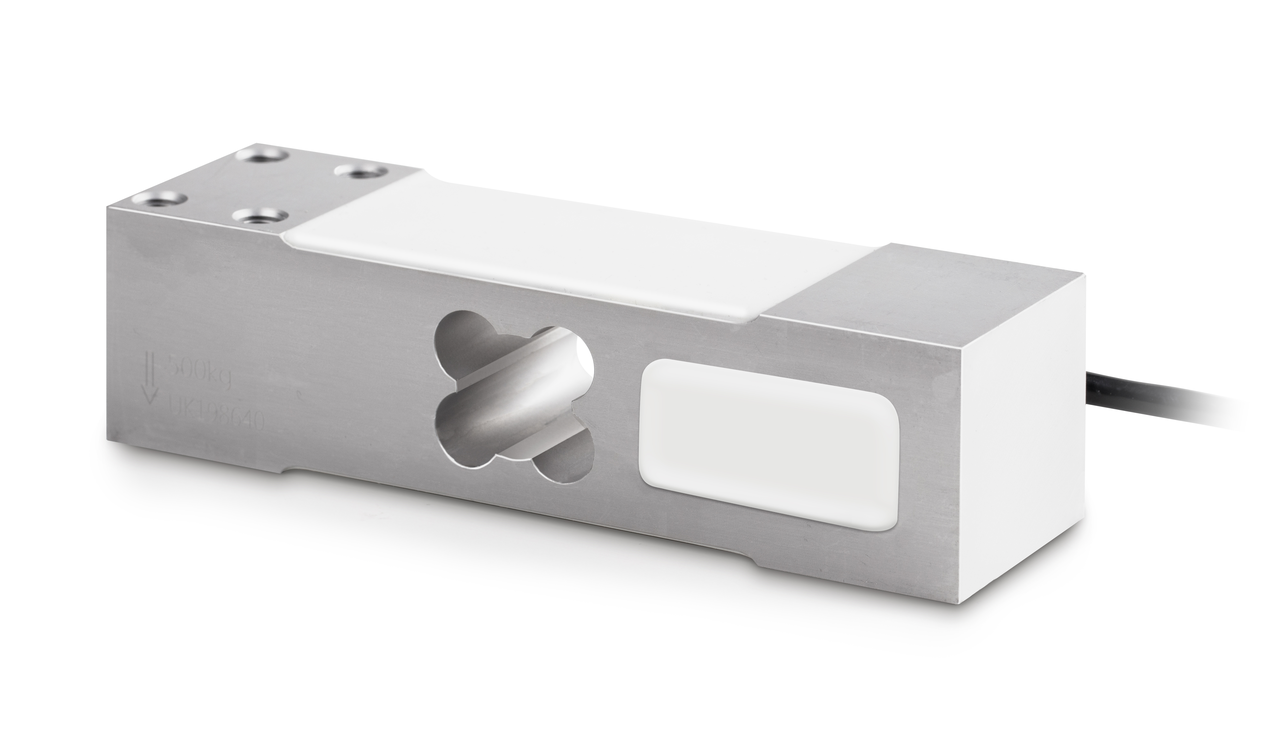

Sauter CP P2 – single-point load cell with 4-wire connection, suitable for many applications such as price computing scales, bench scales, and platform scales. Models up to 300 kg are suitable for platforms up to 40 × 40 cm, while models up to 500 kg can be used on platforms up to 45 × 45 cm. The load cell has a 2 m cable and a nominal sensitivity of 2 mV/V.
OIML Accuracy Class:
OIML R60 C3 (combined error < 0.02%)
Material:
Aluminum
IP Protection:
IP65
Technical Specifications
| OIML classification | C3 |
| Minimum recommended readability | 20 g |
| Max weighing plate size | 450×450 mm |
| Push / Pull | Push |
| Temperature | -35 °C / 65 °C |
| Cable length | 2 m |
| nominal sensitivity | 2 mV/V |
| 4/6 wires | 4-wire |
| Waterproof / dustproof (IP) | Yes (IP65) |
| CE certification | Yes |
| Weight | 0,60 kg |
