Load Cell Sauter - Stainless Steel - CO-Y5

£319.00 - £319.00
Choose model
Standard
IP66 - IND IP66 - LC
Options
Certificate_DAkkS Certificate_factory
Short Description

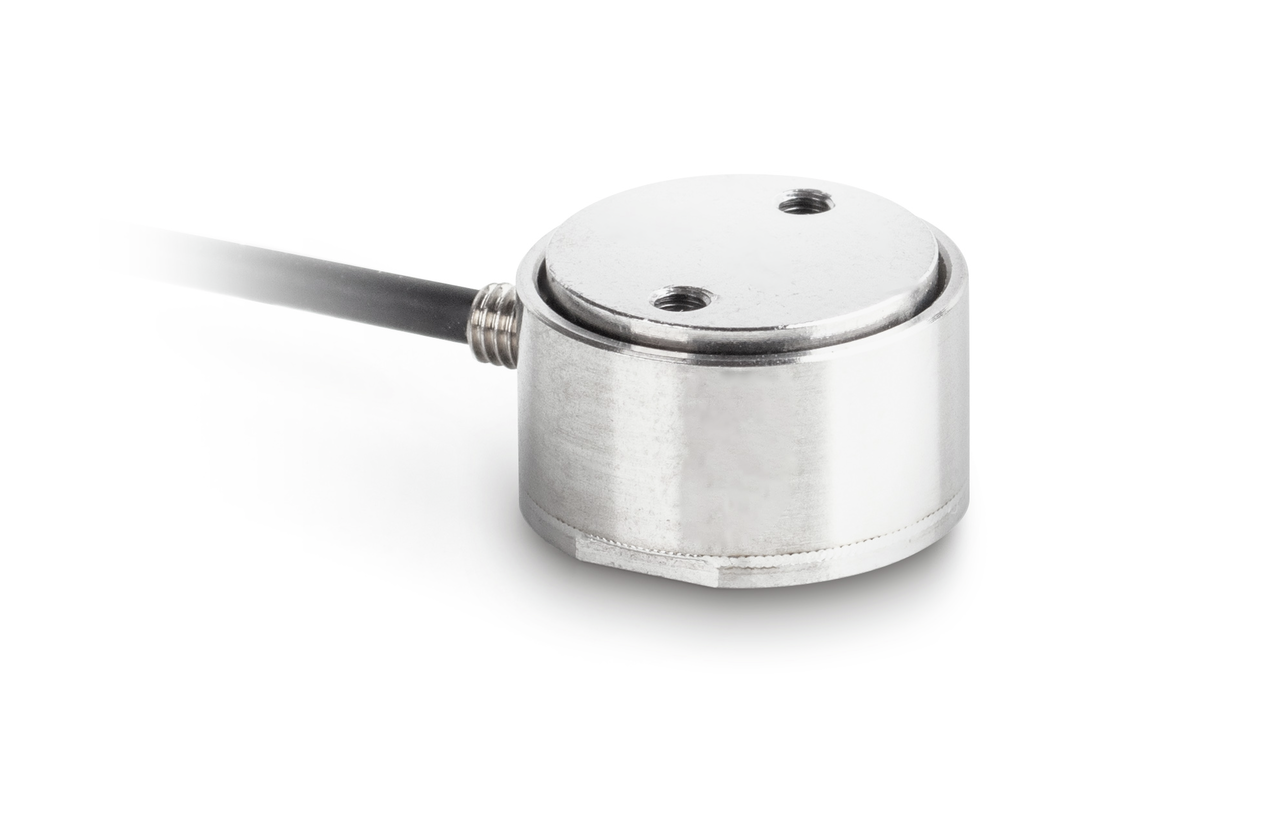

Sauter CO Y5 – cylindrical load cell in stainless steel. Designed to measure both tensile and compressive forces as well as mass. The load cell comes with a 2-meter cable with 4-wire connection and a nominal sensitivity of 1–2 mV/V, depending on capacity. OIML Accuracy Class:OIML R60 G1 (combin .... Read the full description
CO 0.5-Y5
CO 0.5-Y5
CO 0.5-Y5
See specifications
Special Price £344.52 £287.10 £382.80 £319.00
500 g Nominal Value
2 m Cable length
Push / Pull Push / Pull
G1
0.5 g
4-wire
1 mV/V
Yes (IP66)
0,05 kg
-20 °C / 80 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £344.52 £287.10 £382.80 £319.00

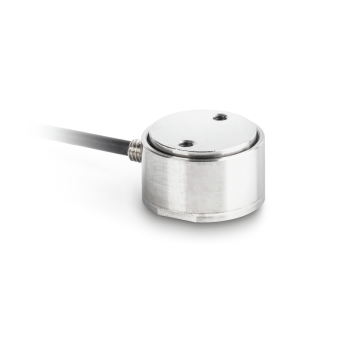

CO 1-Y5
CO 1-Y5
CO 1-Y5
See specifications
Special Price £344.52 £287.10 £382.80 £319.00
1 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G1
1 g
4-wire
1 mV/V
Yes (IP66)
0,05 kg
-20 °C / 80 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £344.52 £287.10 £382.80 £319.00
CO 5-Y5
CO 5-Y5
CO 5-Y5
See specifications
Special Price £344.52 £287.10 £382.80 £319.00
5 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G1
5 g
4-wire
2 mV/V
Yes (IP66)
0,05 kg
-20 °C / 80 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £344.52 £287.10 £382.80 £319.00
CO 10-Y5
CO 10-Y5
CO 10-Y5
See specifications
Special Price £344.52 £287.10 £382.80 £319.00
10 kg Nominal Value
2 m Cable length
Push / Pull Push / Pull
G1
10 g
4-wire
2 mV/V
Yes (IP66)
0,05 kg
-20 °C / 80 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £344.52 £287.10 £382.80 £319.00
pencil-alt

Description

Sauter CO Y5 – cylindrical load cell in stainless steel. Designed to measure both tensile and compressive forces as well as mass. The load cell comes with a 2-meter cable with 4-wire connection and a nominal sensitivity of 1–2 mV/V, depending on capacity.

OIML Accuracy Class:
OIML R60 G1 (combined error < 0.1%)

Material:
Stainless steel

IP Protection:
IP66

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-co-y5
Type loadcells
document

Documents

truck

Delivery

Estimated delivery time 3-5 business days
cog

Technical Specifications

OIML classification G1
Minimum recommended readability 0.5 g
Push / Pull Push / Pull
Temperature -20 °C / 80 °C
Cable length 2 m
nominal sensitivity 1 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP66)
CE certification Yes
Weight 0,05 kg
