Load Cell Sauter - Stainless Steel - CT-Q1

£189.00 - £489.00
Choose model
Standard
IP68 - IND IP69K - IND
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CT-Q1 – Stainless steel load cell. Dust and splash protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal. Stainless steel. Applications: Measurement of mass and force in harsh environments. Suitable for platform scales, weighing hoppers, floor scales and o .... Read the full description
CT 300-3Q1
CT 300-3Q1
CT 300-3Q1
See specifications
Special Price £204.12 £170.10 £226.80 £189.00
300 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
60 g
3000 e
6-wire
2 mV/V
300 kg
kg
Yes (IP69K)
Yes
1,00 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £204.12 £170.10 £226.80 £189.00
CT 500-3Q1
CT 500-3Q1
CT 500-3Q1
See specifications
Special Price £204.12 £170.10 £226.80 £189.00
500 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
100 g
3000 e
6-wire
2 mV/V
500 kg
kg
Yes (IP69K)
Yes
1,00 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £204.12 £170.10 £226.80 £189.00

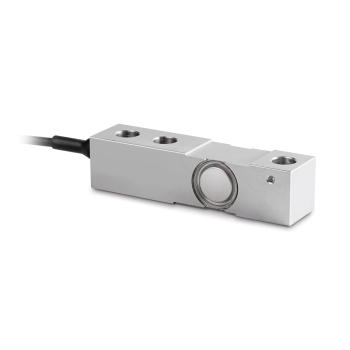

CT 750-3Q1
CT 750-3Q1
CT 750-3Q1
See specifications
Special Price £204.12 £170.10 £226.80 £189.00
750 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
150 g
3000 e
6-wire
2 mV/V
Yes (IP69K)
1,00 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £204.12 £170.10 £226.80 £189.00
CT 1000-3Q1
CT 1000-3Q1
CT 1000-3Q1
See specifications
Special Price £204.12 £170.10 £226.80 £189.00
1000 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
200 g
3000 e
6-wire
2 mV/V
1000 kg
kg
Yes (IP69K)
Yes
0,90 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £204.12 £170.10 £226.80 £189.00
CT 1500-3Q1
CT 1500-3Q1
CT 1500-3Q1
See specifications
Special Price £204.12 £170.10 £226.80 £189.00
1500 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
300 g
3000 e
6-wire
2 mV/V
1500 kg
kg
Yes (IP69K)
Yes
1,00 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £204.12 £170.10 £226.80 £189.00
CT 2000-3Q1
CT 2000-3Q1
CT 2000-3Q1
See specifications
Special Price £204.12 £170.10 £226.80 £189.00
2000 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
400 g
3000 e
6-wire
2 mV/V
2000 kg
kg
Yes (IP69K)
Yes
1,00 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £204.12 £170.10 £226.80 £189.00
CT 3000-3Q1
CT 3000-3Q1
CT 3000-3Q1
See specifications
Special Price £398.52 £332.10 £442.80 £369.00
3000 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
600 g
3000 e
6-wire
2 mV/V
3000 kg
kg
Yes (IP69K)
Yes
2,2 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £398.52 £332.10 £442.80 £369.00

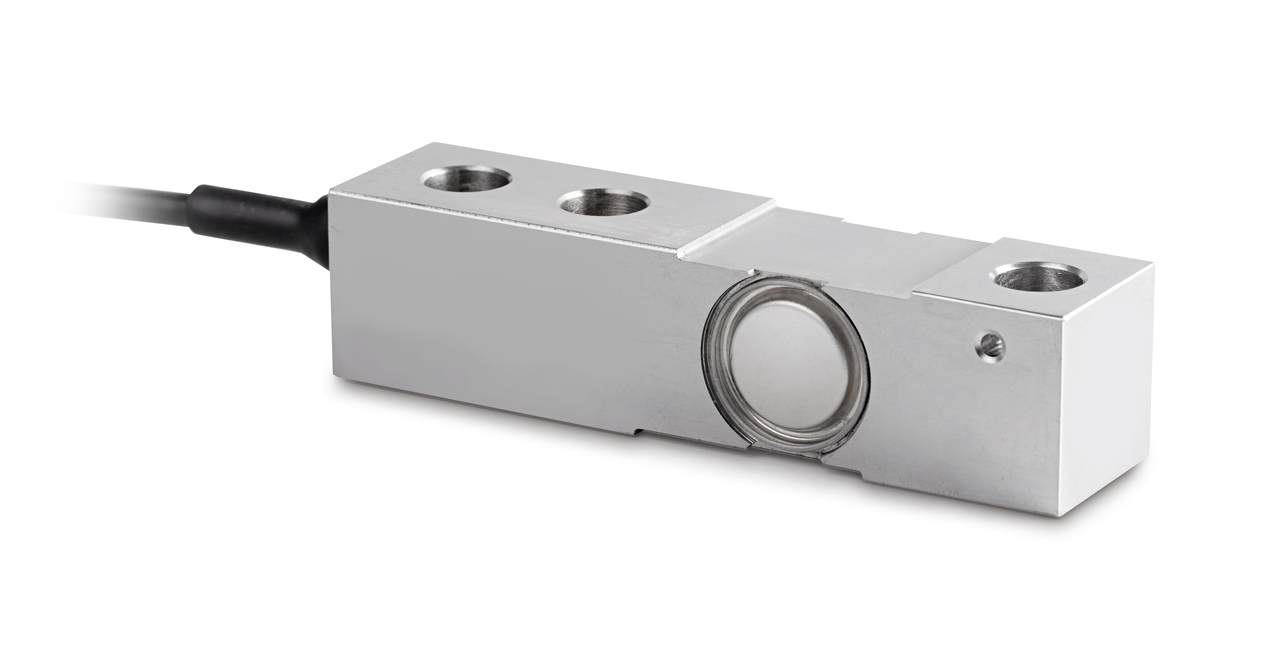

CT 5000-3Q1
CT 5000-3Q1
CT 5000-3Q1
See specifications
Special Price £398.52 £332.10 £442.80 £369.00
5000 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
1 kg
3000 e
6-wire
2 mV/V
Yes (IP69K)
2,2 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £398.52 £332.10 £442.80 £369.00
CT 7500-3Q1
CT 7500-3Q1
CT 7500-3Q1
See specifications
Special Price £528.12 £440.10 £586.80 £489.00
7500 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
1.5 kg
3000 e
6-wire
2 mV/V
Yes (IP69K)
4,4 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £528.12 £440.10 £586.80 £489.00
CT 10000-3Q1
CT 10000-3Q1
CT 10000-3Q1
See specifications
Special Price £528.12 £440.10 £586.80 £489.00
10000 kg Nominal Value
5 m Cable length
Push Push / Pull
C3
2 kg
3000 e
6-wire
2 mV/V
Yes (IP69K)
4,4 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £528.12 £440.10 £586.80 £489.00
pencil-alt

Description

Sauter CT-Q1 – Stainless steel load cell. Dust and splash protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal. Stainless steel. Applications: Measurement of mass and force in harsh environments. Suitable for platform scales, weighing hoppers, floor scales and other weighing devices. Supplied with a 5-metre 6-wire connection - Nominal sensitivity: 2 mV/V.

OIML accuracy class:
OIML R60 C3 (combined error < 0.02%)

Material:
Stainless steel

IP protection:
IP68/IP69K

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-ct-q1
Type loadcells
document

Documents

cog

Technical Specifications

OIML classification C3
Push / Pull Push
Temperature -30 °C / 70 °C
Cable length 5 m
nominal sensitivity 2 mV/V
4/6 wires 6-wire
Waterproof / dustproof (IP) Yes (IP69K)
CE certification Yes
Weight 1,00 kg
