Load Cell Sauter Stainless Steel CB P1

£99.00 - £99.00
Choose model
Standard
Verification IP67 - IND IP67 - LC Stainless Steel
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CB-P1 – Load cell in nickel-plated steel. Applications: Measurement of mass and force in harsh environments. Suitable for platform scales, weighing hoppers, floor scales and other weighing devices. Supplied with a 3-metre 4-wire connection - Nominal sensitivity: 3 mV/V. OIML accuracy class .... Read the full description

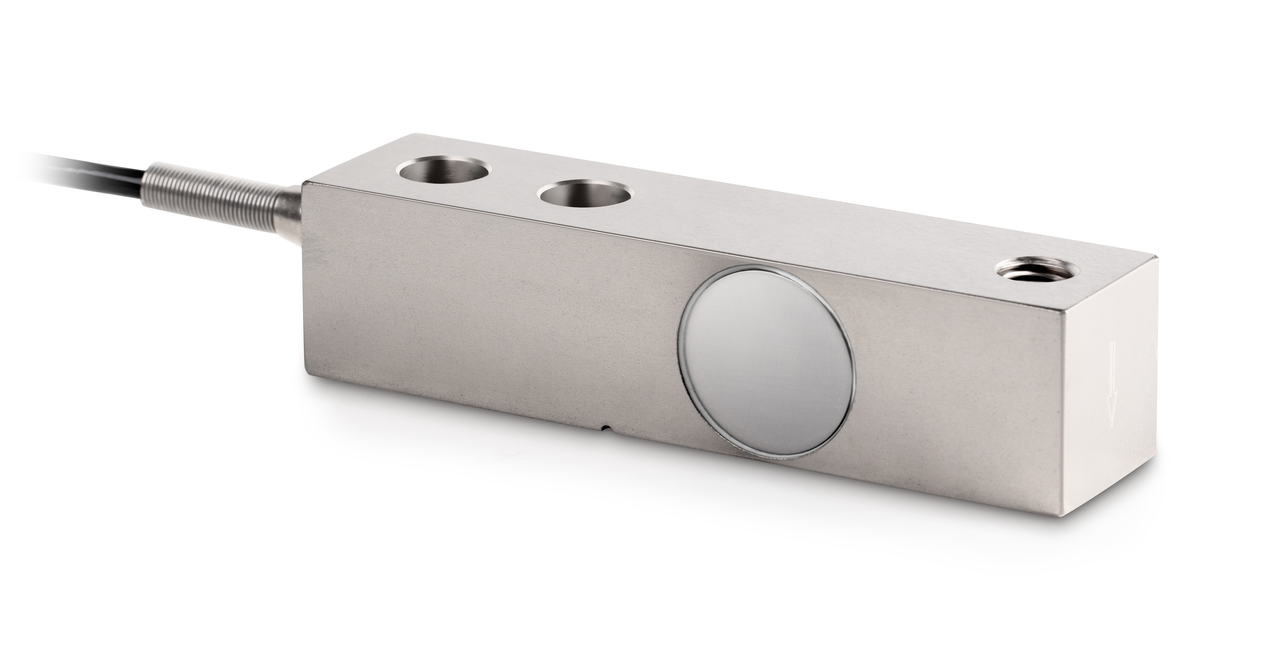

CB 100-3P1
CB 100-3P1
CB 100-3P1
See specifications
Special Price £106.92 £89.10 £118.80 £99.00
100 kg Nominal Value
100 kg Nominal weight
4 m Cable length
Push
C3
20 g
3000 e
4-wire
3 mV/V
100 kg
g
Yes (IP67)
Yes
0,90 kg
-35 °C / 65 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £106.92 £89.10 £118.80 £99.00
CB 250-3P1
CB 250-3P1
CB 250-3P1
See specifications
Special Price £106.92 £89.10 £118.80 £99.00
250 kg Nominal Value
Nominal weight
4 m Cable length
Push
C3
50 g
3000 e
4-wire
3 mV/V
250 kg
g
Yes (IP67)
Yes
0,90 kg
-35 °C / 65 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £106.92 £89.10 £118.80 £99.00
pencil-alt

Description

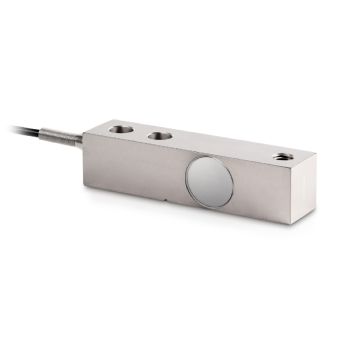

Sauter CB-P1 – Load cell in nickel-plated steel. Applications: Measurement of mass and force in harsh environments. Suitable for platform scales, weighing hoppers, floor scales and other weighing devices. Supplied with a 3-metre 4-wire connection - Nominal sensitivity: 3 mV/V.

OIML accuracy class:
OIML R60 C3 (combined error < 0.02%)

Material:
Nickel-plated steel

IP protection:
IP67

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-cb-p1
Type loadcells
document

Documents

cog

Technical Specifications

Measuring unit g
Protection Dust and Spray protection to IP67
Stainless Steel Yes
CE certification Yes
Calibration certificate available? Yes
