Load Cell Sauter Stainless Steel CB Q1

£199.00 - £199.00
Choose model
Standard
IP68 - IND IP69K - IND IP68 - LC IP69K - LC Stainless Steel
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CB-Q1 - Stainless steel load cell. Dust and splash protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal. Stainless steel. Application: Measurement of mass and force in harsh environments. Suitable for platform scales, weighing hoppers, flush-mounted floor s .... Read the full description

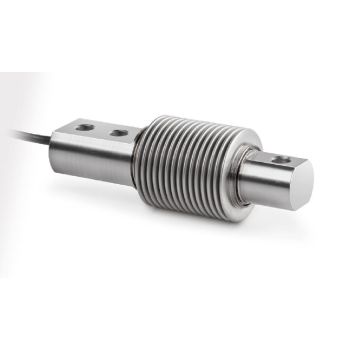

CB 5-3Q1
CB 5-3Q1
CB 5-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
5 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
1 g
3000 e
4-wire
2 mV/V
5 kg
g
Yes (IP69K)
Not specified
0,50 kg
-30 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 10-3Q1
CB 10-3Q1
CB 10-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
10 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
2 g
3000 e
4-wire
2 mV/V
10 kg
g
Yes (IP69K)
Not specified
0,50 kg
-30 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 20-3Q1
CB 20-3Q1
CB 20-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
20 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
4 g
3000 e
4-wire
2 mV/V
Yes (IP69K)
0,50 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 30-3Q1
CB 30-3Q1
CB 30-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
30 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
6 g
3000 e
4-wire
2 mV/V
Yes (IP69K)
0,50 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00

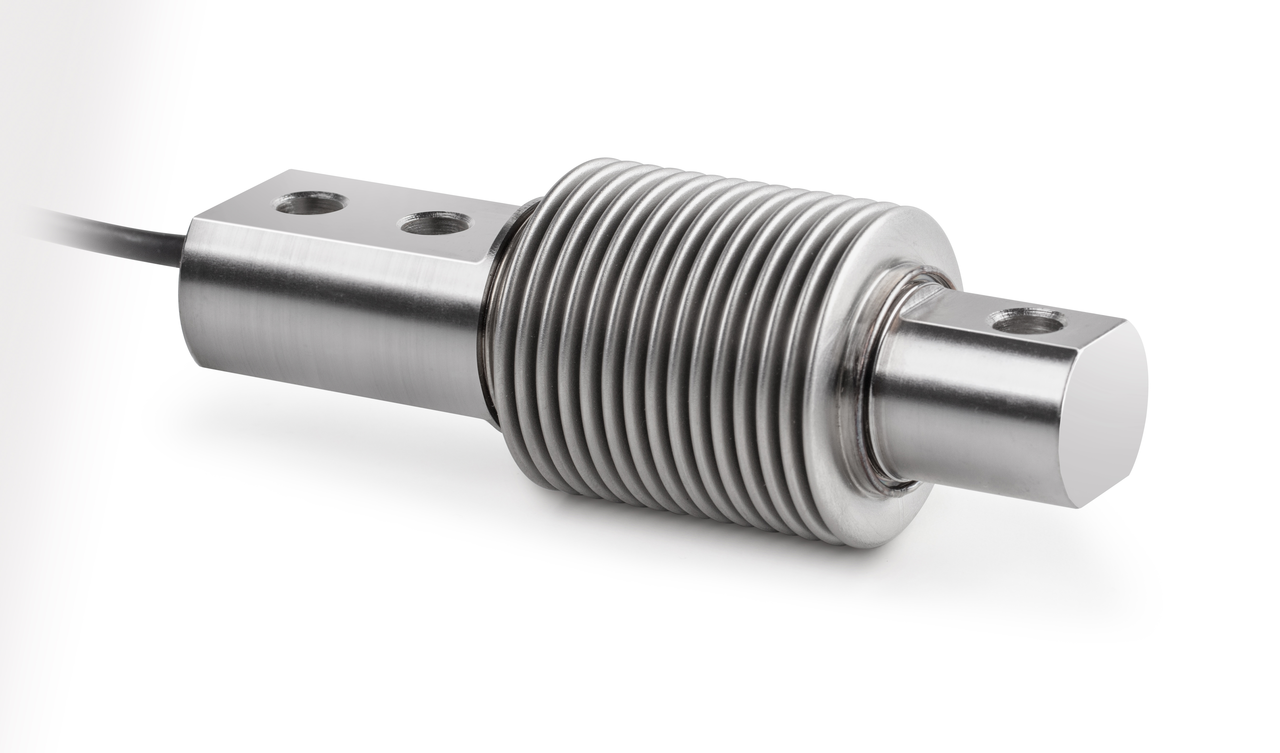

CB 50-3Q1
CB 50-3Q1
CB 50-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
50 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
10 g
3000 e
4-wire
2 mV/V
50 kg
g
Yes (IP69K)
Yes
0,50 kg
-30 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 75-3Q1
CB 75-3Q1
CB 75-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
75 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
15 g
3000 e
4-wire
2 mV/V
Yes (IP69K)
0,50 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 100-3Q1
CB 100-3Q1
CB 100-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
100 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
20 g
3000 e
4-wire
2 mV/V
100 kg
g
Yes (IP69K)
Yes
0,50 kg
-30 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 150-3Q1
CB 150-3Q1
CB 150-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
150 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
30 g
3000 e
4-wire
2 mV/V
Yes (IP69K)
0,50 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 200-3Q1
CB 200-3Q1
CB 200-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
200 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
40 g
3000 e
4-wire
2 mV/V
Yes (IP69K)
0,50 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 250-3Q1
CB 250-3Q1
CB 250-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
250 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
50 g
3000 e
4-wire
2 mV/V
Yes (IP69K)
0,50 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 300-3Q1
CB 300-3Q1
CB 300-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
300 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
60 g
3000 e
4-wire
2 mV/V
300 kg
g
Yes (IP69K)
Yes
0,50 kg
-30 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
CB 500-3Q1
CB 500-3Q1
CB 500-3Q1
See specifications
Special Price £214.92 £179.10 £238.80 £199.00
500 kg Nominal Value
3 m Cable length
Push Push / Pull
C3
100 g
3000 e
4-wire
2 mV/V
Yes (IP69K)
0,50 kg
-30 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £214.92 £179.10 £238.80 £199.00
pencil-alt

Description

Sauter CB-Q1 - Stainless steel load cell. Dust and splash protection to IP68/IP69K (in accordance with EN 60529), welded to create a hermetic seal. Stainless steel. Application: Measurement of mass and force in harsh environments. Suitable for platform scales, weighing hoppers, flush-mounted floor scales and other weighing devices. Supplied with a 3-metre 4-wire connection. Nominal sensitivity: 2 mV/V.

OIML accuracy class:
OIML R60 C3 (combined error < 0.02%)

Material:
Stainless steel

IP protection:
IP68/IP69K

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-cb-q1
Type loadcells
document

Documents

cog

Technical Specifications

OIML classification C3
Nominal Value 5 kg
Measuring unit g
Push / Pull Push
Temperature -30 °C / 70 °C
Cable length 3 m
nominal sensitivity 2 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP69K)
Protection Dust and spray protection to IP68/IP69K
Stainless Steel Yes
CE certification Yes
Calibration certificate available? Not specified
Loadcell type Force compensation
