Sauter Load Cell Stainless Steel CR Q1

£249.00 - £479.00
Choose model
Standard
IP68 - IND IP68 - LC Stainless Steel
Options
Certificate_DAkkS Certificate_factory
Short Description
Sauter CR Q1 load cell made of 100% stainless steel, hermetically sealed, with water and dust protection IP68 (according to EN 60529). It is suitable for measuring mass and compressive force in harsh environments, for example in platform scales, silo scales, bed scales, and other industrial applicat .... Read the full description
CR 2500-1Q1
CR 2500-1Q1
CR 2500-1Q1
See specifications
Special Price £268.92 £224.10 £298.80 £249.00
2500 kg Nominal Value
10 m Cable length
Push Push / Pull
C1
1.25 kg
1000e
4-wire
2 mV/V
2.5 ton
kg
Yes (IP68)
Yes
1,2 kg
-50 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £268.92 £224.10 £298.80 £249.00

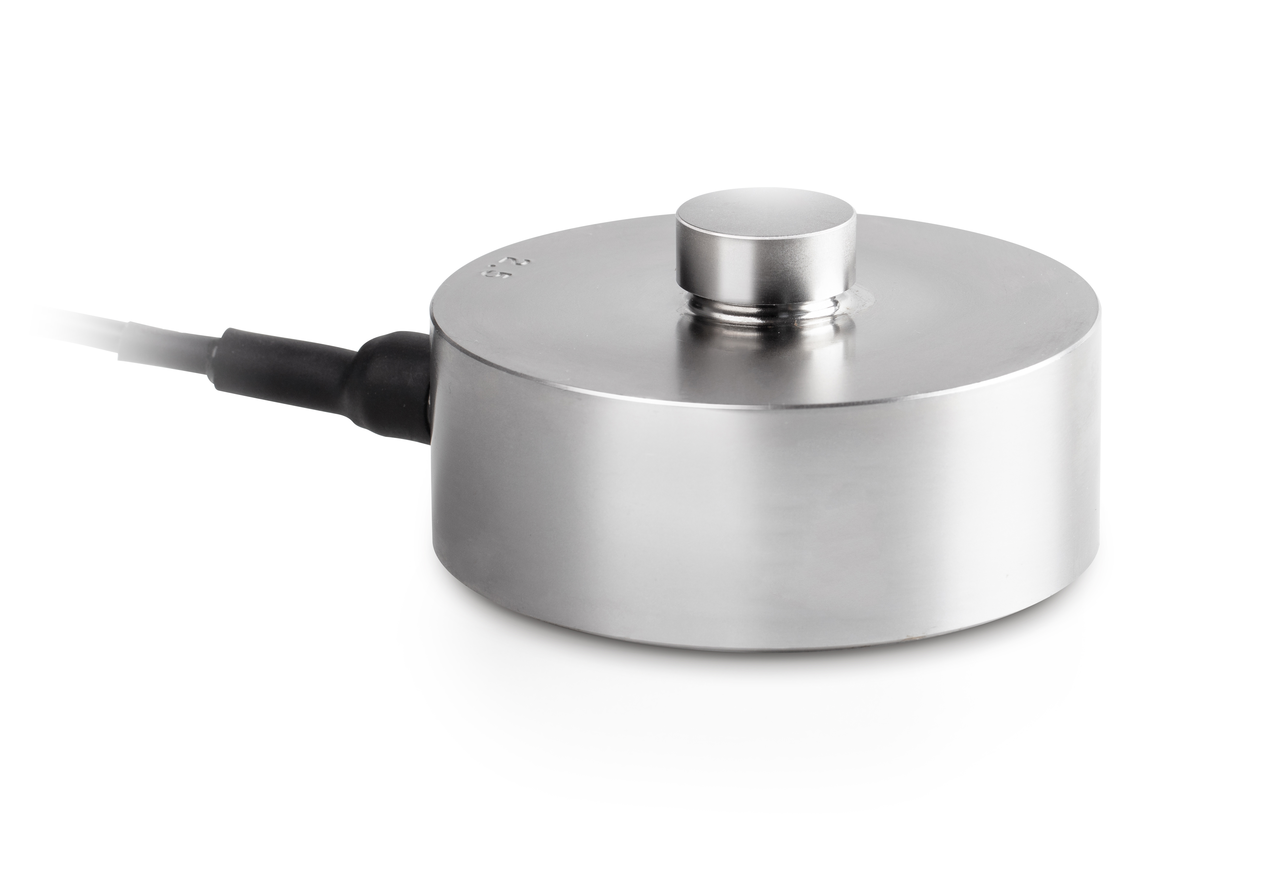

CR 5000-1Q1
CR 5000-1Q1
CR 5000-1Q1
See specifications
Special Price £268.92 £224.10 £298.80 £249.00
5000 kg Nominal Value
10 m Cable length
Push Push / Pull
C1
2.5 kg
1000e
4-wire
2 mV/V
5 ton
kg
Yes (IP68)
Yes
1,2 kg
-50 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £268.92 £224.10 £298.80 £249.00
CR 10000-1Q1
CR 10000-1Q1
CR 10000-1Q1
See specifications
Special Price £268.92 £224.10 £298.80 £249.00
10000 kg Nominal Value
10 m Cable length
Push Push / Pull
C1
5 kg
1000e
4-wire
2 mV/V
10 ton
kg
Yes (IP68)
Yes
1,2 kg
-50 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £268.92 £224.10 £298.80 £249.00
CR 20000-1Q1
CR 20000-1Q1
CR 20000-1Q1
See specifications
Special Price £517.32 £431.10 £574.80 £479.00
20000 kg Nominal Value
10 m Cable length
Push Push / Pull
C1
10 kg
1000e
4-wire
2 mV/V
20 ton
kg
Yes (IP68)
Yes
2,8 kg
-50 °C / 70 °C
Not specified
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £517.32 £431.10 £574.80 £479.00
CR 30000-1Q1
CR 30000-1Q1
CR 30000-1Q1
See specifications
Special Price £517.32 £431.10 £574.80 £479.00
30000 kg Nominal Value
10 m Cable length
Push Push / Pull
C1
15 kg
1000e
4-wire
2 mV/V
Yes (IP68)
2,8 kg
-50 °C / 70 °C
Calibration Certificate / Verification
Contact us to find out more about the possibilities
Special Price £517.32 £431.10 £574.80 £479.00
pencil-alt

Description

Sauter CR Q1 load cell made of 100% stainless steel, hermetically sealed, with water and dust protection IP68 (according to EN 60529). It is suitable for measuring mass and compressive force in harsh environments, for example in platform scales, silo scales, bed scales, and other industrial applications. The load cell has a nominal sensitivity of 2 mV/V and comes with a 10-meter cable with a 4-wire connection, ensuring quick and easy installation.

OIML Accuracy Class:
OIML R60 C1 (combined error < 0.05%)

Material:
Stainless steel

IP Protection:
IP68

Notice:
All products come with an English manual If you have any questions about the use of the scale, you are welcome to contact us.
clipboard-list

General

Manufacturer Sauter
SKU sauter-cr-q1
Type loadcells
document

Documents

cog

Technical Specifications

OIML classification C1
Nominal Value 2500 kg
Measuring unit g, kg
Push / Pull Push
Temperature -50 °C / 70 °C
Cable length 10 m
nominal sensitivity 2 mV/V
4/6 wires 4-wire
Waterproof / dustproof (IP) Yes (IP68)
Protection Dust and spray protection to IP68
Stainless Steel Yes
CE certification Yes
Calibration certificate available? Not specified
